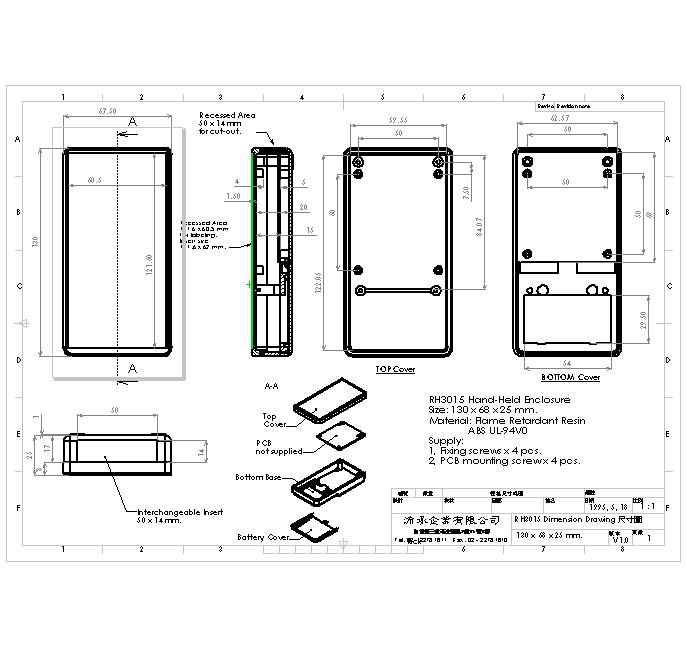

(RH3005 Dimension Drawing) (RH3015 Dimension Drawing)

2D & 3D CAD file please email us

ABS UL-94V0 TOP  & BOTTOM COVERS IN LIGHT GRAY COLOR,

IP65 SEALED TYPE with Battery Cover

ABS UL-94V0 TOP  & BOTTOM COVERS IN LIGHT GRAY COLOR,

STANDARD TYPE with Battery Cover

Size:  130 x 68 x 25 mm.

 Top Recessed Area:  91 x 50  mm.

 Standard Material:

    ABS UL-94V0 in light Gray.

 Hardware supplied:

    Fixing screws,

    PCB mounting screw.

(SEALED Type included sealing gasket & Stainless screws)
