(Dimension Drawing)

 Size:  178 x 100 x 190 mm.

 Top Recessed: 39 x 52 mm.

 Standard Material:

    ABS UL-94V0 in light Gray.

    Aluminum in light gray painted.

 Supply included:

    Fixing screws,

    PCB mounting screw.

ABS UL-94V0 FRONT & REAR BEZELS,

SOLID TOP & BOTTOM ALUMINUM PLATES

SOLID LEFT & RIGHT ALUMINUM FRAMES.

ABS UL-94V0 FRONT & REAR BEZELS,

VENT TYPE TOP & BOTTOM ALUMINUM PLATES

SOLID LEFT & RIGHT ALUMINUM FRAMES.

ABS UL-94V0 FRONT & REAR BEZELS,

SOLID TOP & BOTTOM ALUMINUM PLATES

SOLID LEFT & RIGHT ALUMINUM FRAMES.

HORIZONTAL STAND FEET

ABS UL-94V0 FRONT & REAR BEZELS,

SOLID TOP & BOTTOM ALUMINUM PLATES

SOLID LEFT & RIGHT ALUMINUM FRAMES.

VERTICAL STAND FEET

ABS UL-94V0 FRONT & REAR BEZELS,

VENT TYPE TOP & BOTTOM ALUMINUM PLATES

SOLID LEFT & RIGHT ALUMINUM FRAMES.

SOLID LEFT & RIGHT ALUMINUM FRAMES.

HORIZONTAL STAND FEET

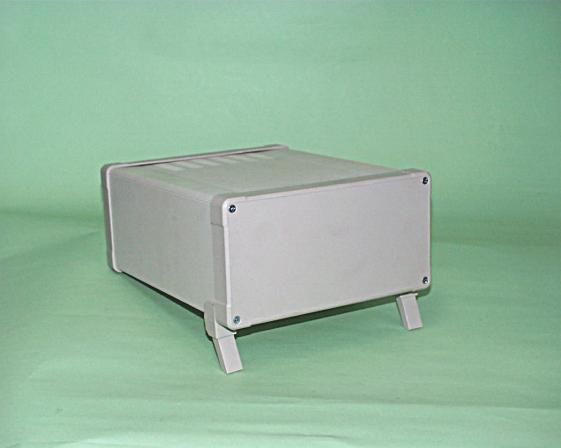

ABS UL-94V0 FRONT & REAR BEZELS,

VENT TYPE TOP & BOTTOM ALUMINUM PLATES

SOLID LEFT & RIGHT ALUMINUM FRAMES.

SOLID LEFT & RIGHT ALUMINUM FRAMES.

VERTICAL STAND FEET
