RP
Series
Sealed Enclosures
|
FEATURES:
*
Two
material supplied for different application.
ABS
(UL-94HB)
in Light
Gray Color (RAL1035).
Polycarbonate
(UL-94V2)
in off-white color
(RAL7035).
*

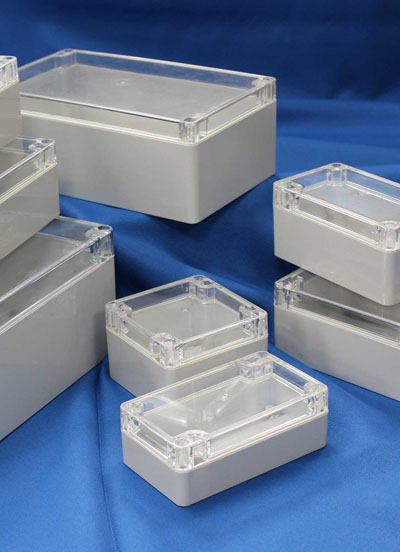

All sizes are supplied with Clear or Color Top Lid.
*
Polycarbonate material was a high performance thermoplastic, suitable for
out-door using.
*
Temperature Rate -
ABS
: -30℃
~ +75℃
PC
:
-40℃ ~ +125℃
|
|
* Top Lid designed with smooth surface,
easy for machining and silkscreen printing custom logos and graphics directly.
*
Molded Top & Bottom two parts construction with tongue and groove,
water and dust resistant rate up to IP65 for EPDM Gasket, IP67 for Silicon
Gasket .
|
|
SIZE
(
L x W x H )
|
Polycarbonate
|
ABS
|
|
82 x
80 x 55 mm.
|
RZ0256
|
RZ0256C
|
RP1025
|
RP1025C
|
|
115 x 65
x 40 mm.
|
RZ0203
|
RZ0203C
|
RP1065
|
RP1065C
|
|
115 x 65
x 55
mm.
|
RZ0205
|
RZ0205C
|
RP1085
|
RP1085C
|
|
115 x
90
x
55
mm.
|
RZ0212
|
RZ0212C
|
RP1095
|
RP1095C
|
|
171 x 121
x 55 mm.
|
RZ0214
|
RZ0214C
|
RP1135
|
RP1135C
|
|
171 x 121
x
80
mm.
|
RZ0223
|
RZ0223C
|
RP1155
|
RP1155C
|
|
200 x 120
x 75 mm.
|
RZ0269
|
RZ0269C
|
RP1175
|
RP1175C
|
|
222 x 146
x 55 mm.
|
RZ0218
|
RZ0218C
|
RP1185
|
RP1185C
|
|
222 x
146
x 75
mm.
|
RZ0232
|
RZ0232C
|
RP1205
|
RP1205C
|
|
240 x 160
x 90
mm.
|
RZ2018
|
RZ2018C
|
RP1215
|
RP1215C
|
|
**
Option: C – All sizes are
available for PC clear Top cover
(UV stabilized) .
|
|
STA/STC – Inner mounting
plate is available for all sizes (sheet Metal or ABS) .
|
|
MF0045 / MF0040 – External Wall
Mounting Feet.
|
Customization
Service:
• Machining: Drilling, Milling, Punching for
custom cut-out opening.
• Finish: Silkscreen Printing, PAD Printing,
Hot Stamp Printing & Painting.
• Insert Modification: Top cover recessed area
could modify as customer's opening
for quantity production.
(MOQ requested)
• Custom
material and Custom Color are available up on request. (MOQ
requested)
• Custom OEM and ODM enclosure projects are
available up on request. (MOQ requested)
Material
|
Rate
|
UL rate
|
Temperature |
Color |
UV |
Gasket |
Polycarbonate
|
IP65
|
UL-94V2
|
–40 ~ +125℃
|
Off-White
|
○
|
EPDM
|
|
ABS
|
IP65
|
UL-94HB
|
–30 ~ +75℃
|
Light Gray
|
—
|
EPDM
|
|
