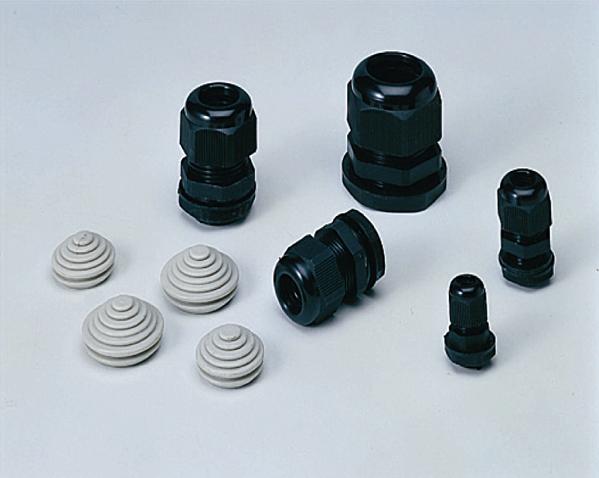

RG
Series
防水電纜線固定頭
IP68
Cable Glands
1, PG 牙規系列
|
產品編號 |
規 格 |
適用線徑 O.D. mm. |
C1 |
D1 |
G1 |
L1 |
L2 |
N1 |
N2 |
NW |
| RG070 |
PG-7 |
Ø3.0
¨~ Ø6.5 |
6.5 |
12.4 |
1.5 |
8.0 |
21.0 |
21.1 |
19.0 |
5.0 |
|
RG070L |
PG-7 |
Ø3.0
¨~ Ø6.5 |
6.5 |
12.4 |
1.5 |
15.0 |
21.0 |
21.1 |
19.0 |
5.0 |
| RG090 |
PG-9 |
Ø4.0
¨~ Ø8.0 |
8.0 |
15.1 |
1.5 |
8.0 |
22.0 |
24.6 |
22.0 |
5.0 |
|
RG090L |
PG-9 |
Ø4.0
¨~ Ø8.0 |
8.0 |
15.1 |
1.5 |
15.0 |
22.0 |
24.6 |
22.0 |
5.0 |
| RG110 |
PG-11 |
Ø5.0
¨~ Ø10.0 |
10.0 |
18.4 |
1.5 |
8.0 |
25.0 |
26.1 |
24.0 |
5.0 |
|
RG110L |
PG-11 |
Ø5.0
¨~ Ø10.0 |
10.0 |
18.4 |
1.5 |
15.0 |
25.0 |
26.1 |
24.0 |
5.0 |
| RG135 |
PG-13.5 |
Ø6.0
¨~ Ø12.0 |
12.0 |
20.2 |
1.5 |
9.0 |
27.0 |
30.0 |
27.0 |
6.0 |
|
RG135L |
PG-13.5 |
Ø6.0
¨~ Ø12.0 |
12.0 |
20.2 |
1.5 |
15.0 |
27.0 |
30.0 |
27.0 |
6.0 |
| RG160 |
PG-16 |
Ø10.0
¨~ Ø14.0 |
14.0 |
22.4 |
1.5 |
10.0 |
28.0 |
33.2 |
30.0 |
5.8 |
|
RG160L |
PG-16 |
Ø10.0
¨~ Ø14.0 |
14.0 |
22.4 |
1.5 |
15.0 |
28.0 |
33.2 |
30.0 |
5.8 |
| RG210 |
PG-21 |
Ø13.0
¨~ Ø18.0 |
18.0 |
28.0 |
1.5 |
11.0 |
31.0 |
39.2 |
36.0 |
6.0 |
|
RG210L |
PG-21 |
Ø13.0
¨~ Ø18.0 |
18.0 |
28.0 |
1.5 |
15.0 |
31.0 |
39.2 |
36.0 |
6.0 |
| RG290 |
PG-29 |
Ø18.0
¨~ Ø25.0 |
25.0 |
37.0 |
1.5 |
11.0 |
37.0 |
50.0 |
46.0 |
7.0 |
|
RG290L |
PG-29 |
Ø18.0
¨~ Ø25.0 |
25.0 |
37.0 |
1.5 |
15.0 |
37.0 |
50.0 |
46.0 |
7.0 |
2, 公制牙規系列
|
產品編號 |
規 格 |
適用線徑 O.D. mm. |
C1 |
D1 |
G1 |
L1 |
L2 |
N1 |
N2 |
NW |
| RG012 |
M12 |
Ø3.0
~ Ø6.5 |
6.5 |
12.0 |
1.5 |
8.0 |
21.0 |
19.0 |
17.0 |
5.0 |
|
RG012L |
M12 |
Ø3.0
~ Ø6.5 |
6.5 |
12.0 |
1.5 |
15.0 |
21.0 |
19.0 |
17.0 |
5.0 |
| RG016 |
M16 |
Ø5.0
~ Ø10.0 |
10.0 |
16.0 |
1.5 |
8.0 |
25.0 |
24.5 |
22.0 |
5.0 |
|
RG016L |
M16 |
Ø5.0
~ Ø10.0 |
10.0 |
16.0 |
1.5 |
15.0 |
25.0 |
24.5 |
22.0 |
5.0 |
| RG020 |
M20 |
Ø10.0
~ Ø14.0 |
14.0 |
20.0 |
1.5 |
9.0 |
28.0 |
29.1 |
27.0 |
5.6 |
|
RG020L |
M20 |
Ø10.0
~ Ø14.0 |
14.0 |
20.0 |
1.5 |
15.0 |
28.0 |
29.1 |
27.0 |
5.6 |
| RG025 |
M25 |
Ø13.0
~ Ø18.0 |
18.0 |
25.0 |
1.5 |
11.0 |
31.0 |
35.0 |
32.0 |
6.0 |
|
RG025L |
M25 |
Ø13.0
~ Ø18.0 |
18.0 |
25.0 |
1.5 |
15.0 |
31.0 |
35.0 |
32.0 |
6.0 |
| RG032 |
M32 |
Ø18.0
~ Ø25.0 |
25.0 |
32.0 |
1.5 |
11.0 |
39.0 |
46.2 |
41.0 |
7.0 |
|
RG032L |
M32 |
Ø18.0
~ Ø25.0 |
25.0 |
32.0 |
1.5 |
15.0 |
39.0 |
46.2 |
41.0 |
7.0 |
enclosures
for cable glands
IP54
萬用防水塞頭
|
產品編號 |
鑽孔孔徑 |
適用線徑 |

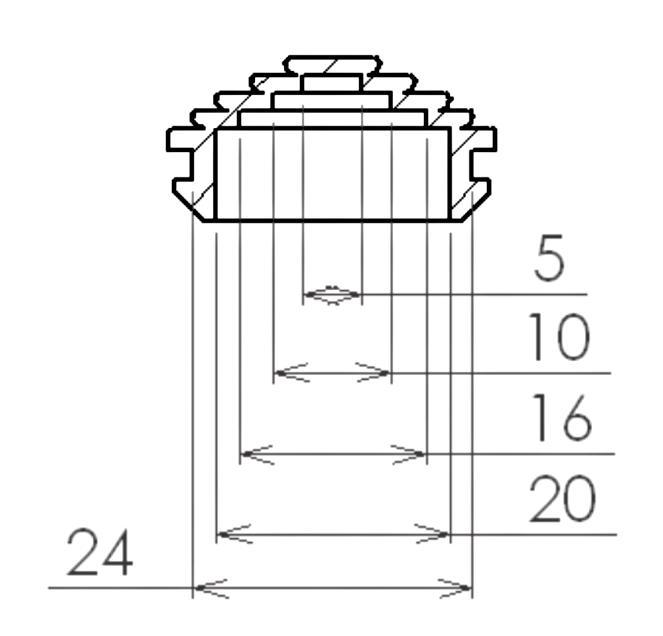

| RG-20U |
Ø24.0 |
Ø5.0¨~
Ø20.0 (steps 5,10,16,20) |

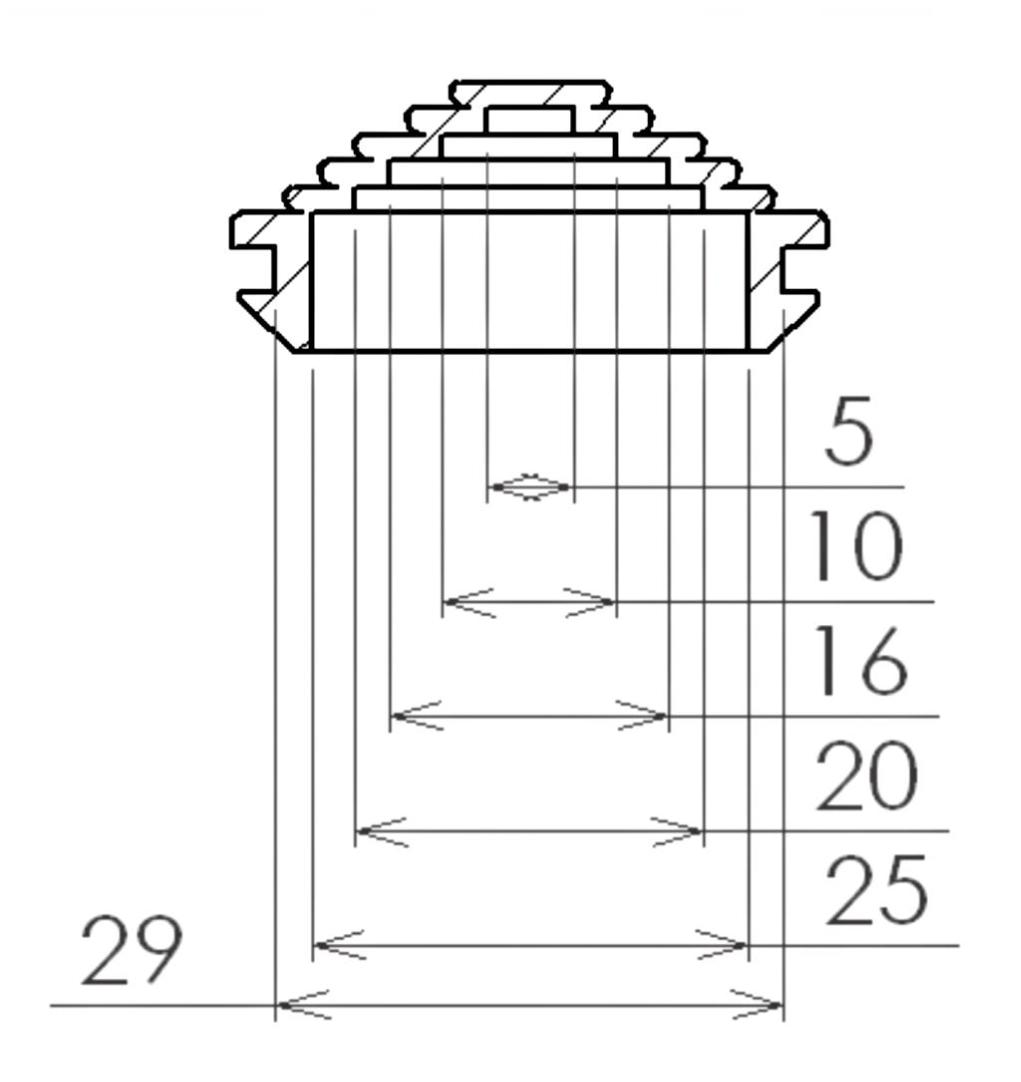

| RG-25U |
Ø29.0 |
Ø5.0¨~
Ø25.0 (steps 5,10,16,20,25) |
enclosures
for universal wire entry
|
