(RH3115 Dimension Drawing) (RH3115 Dimension Drawing)

2D & 3D CAD file please email us

ABS UL-94V0 TOP  & BOTTOM COVERS IN LIGHT GRAY COLOR,

ABS UL-94V0 FRONT END PANEL

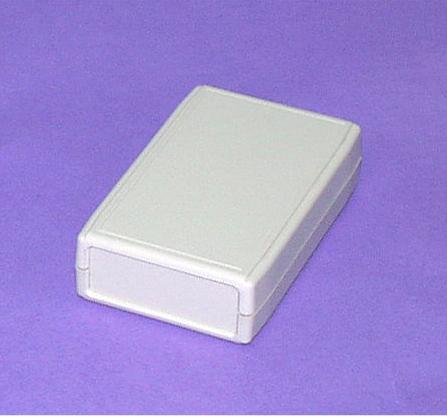

RH3115 series with

PMMA INFRA-RED FRONT END PANEL

Size:  100 x 60 x 25 mm.

 Top Insert:  91 x 50  mm.

 Standard Material:

    ABS UL-94V0 in light Gray.

 Hardware supplied:

    Fixing screws,

    PCB mounting screw.
