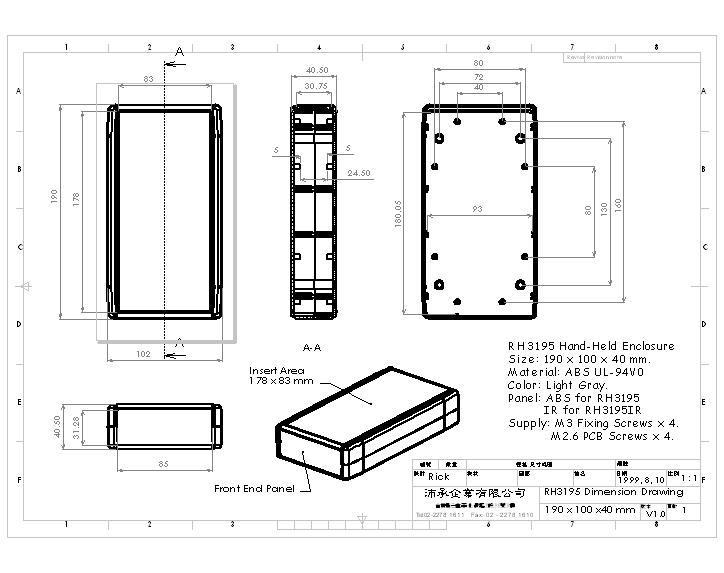

(Dimension Drawing)

ABS UL-94V0 TOP  & BOTTOM COVERS IN LIGHT GRAY COLOR,

ABS UL-94V0 FRONT END PANEL

ABS UL-94V0 TOP  & BOTTOM COVERS IN LIGHT GRAY COLOR,

PMMA INFRA-RED FRONT END PANEL

 Size:  190 x 100 x 40 mm.

 Top Insert:   mm.

 Standard Material:

    ABS UL-94V0 in light Gray.

 Supply included:

    Fixing screws,

    PCB mounting screw.
