Size:   130 x 100 x 30 mm.

  Top Recessed:  None.

  Inner Size:  242 x 192 x 122.5 mm.

  Hardware:

  1. M3 Fixing screw x2

  2. M3 PCB mounting screw x4,

Dimension Drawing

(   PDF  /  DWG  )

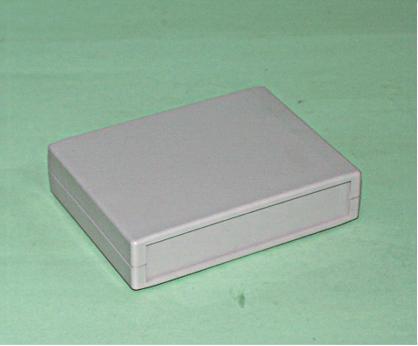

RM2015S

  Light Gray ABS Top Cover,

  Light Gray ABS Bottom Cover,

 .Light Gray ABS Front & Rear End Panel.

  Light Gray ABS Top Cover,

  Light Gray ABS Bottom Cover,

 .IR Dark Red Transparent Front End Panel.

  Light Gray ABS Rear End Panel.

  Light Gray ABS Top Cover,

  Light Gray ABS Bottom Cover,

  Anodized AL Front & Rear End Panel.
