Size:  105 x 65 x 30 mm.

  Top Recessed:   79 x 57 mm.

  Inner Size:  100 x 60 x 24.7 mm.

  Hardware:

  1. M2.6 Fixing screw x4

  2. M2.6 PCB mounting screw x4,

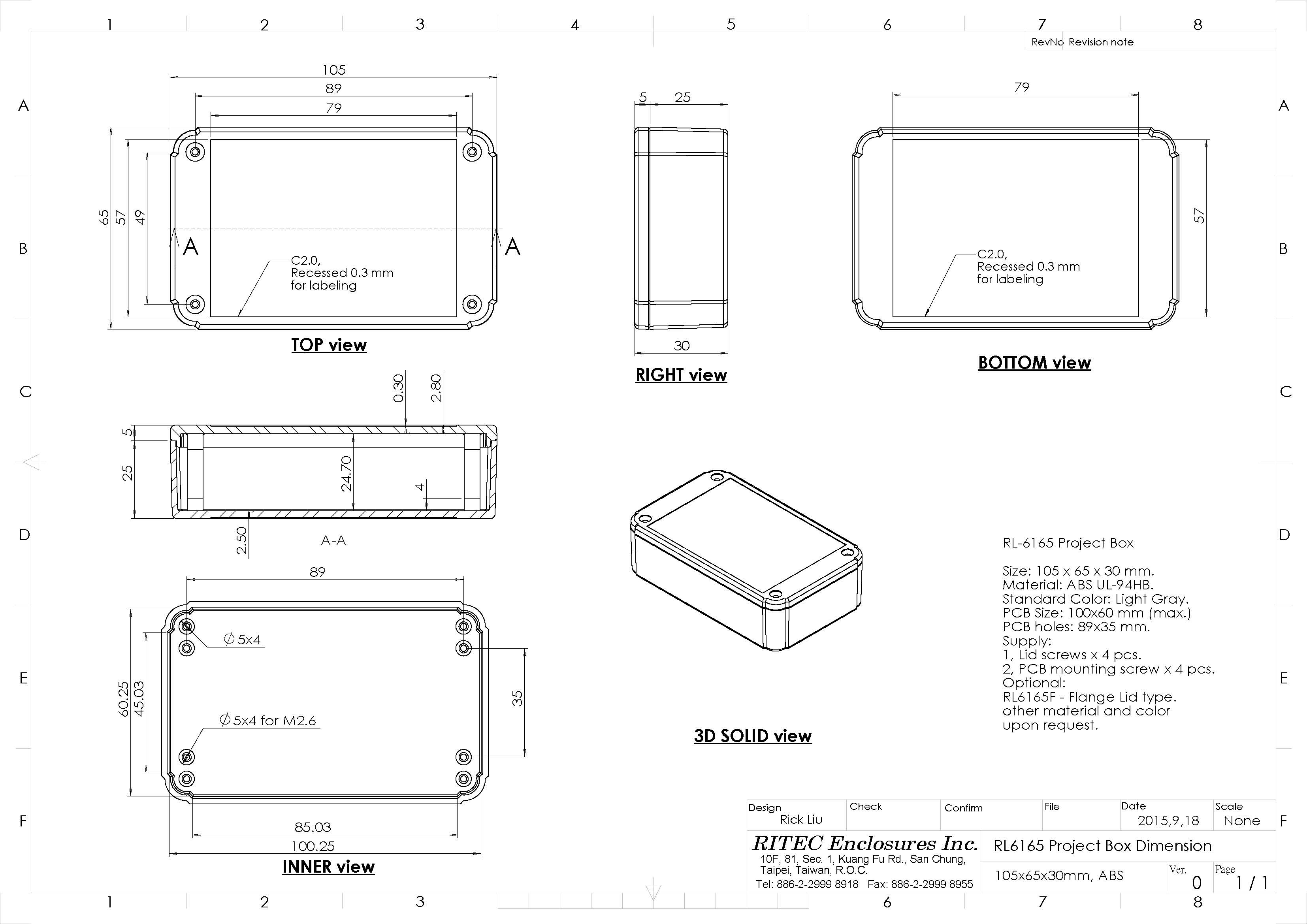

Dimension Drawing

RL6165

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

(   PDF  /  DWG  )

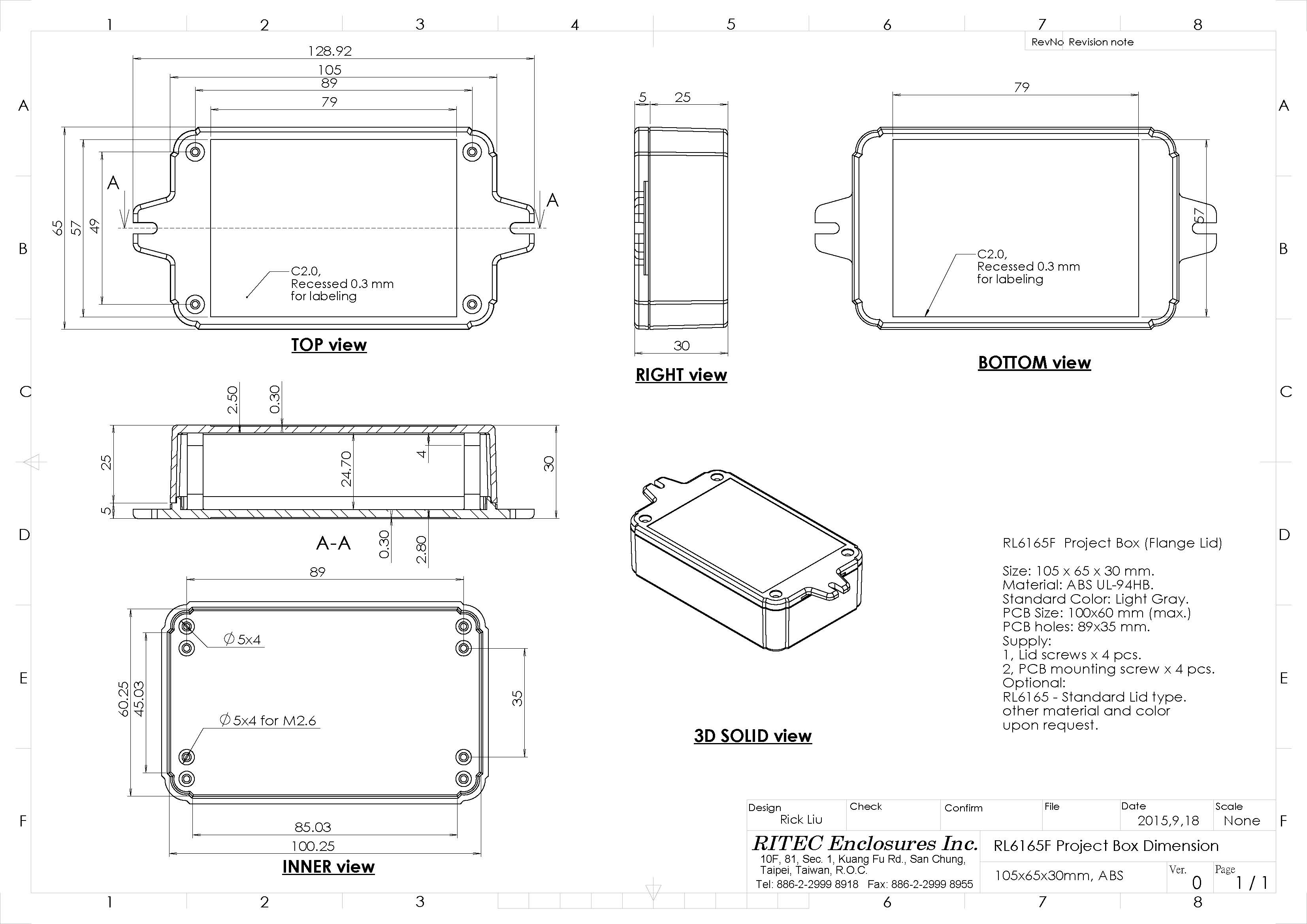

  Light Gray ABS TOP Flange LID,

  Light Gray ABS BOTTOM BASE.

(   PDF  /  DWG  )
