RL Series Sealed Enclosures

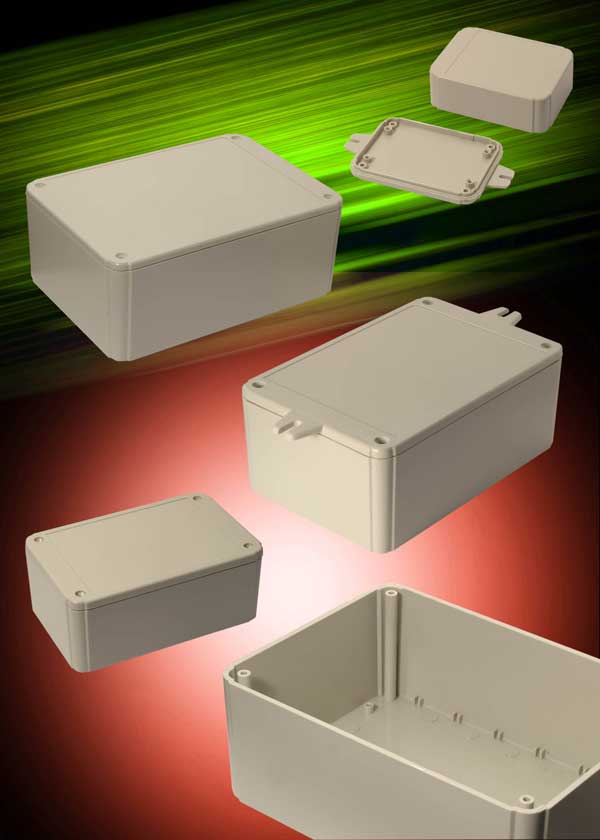

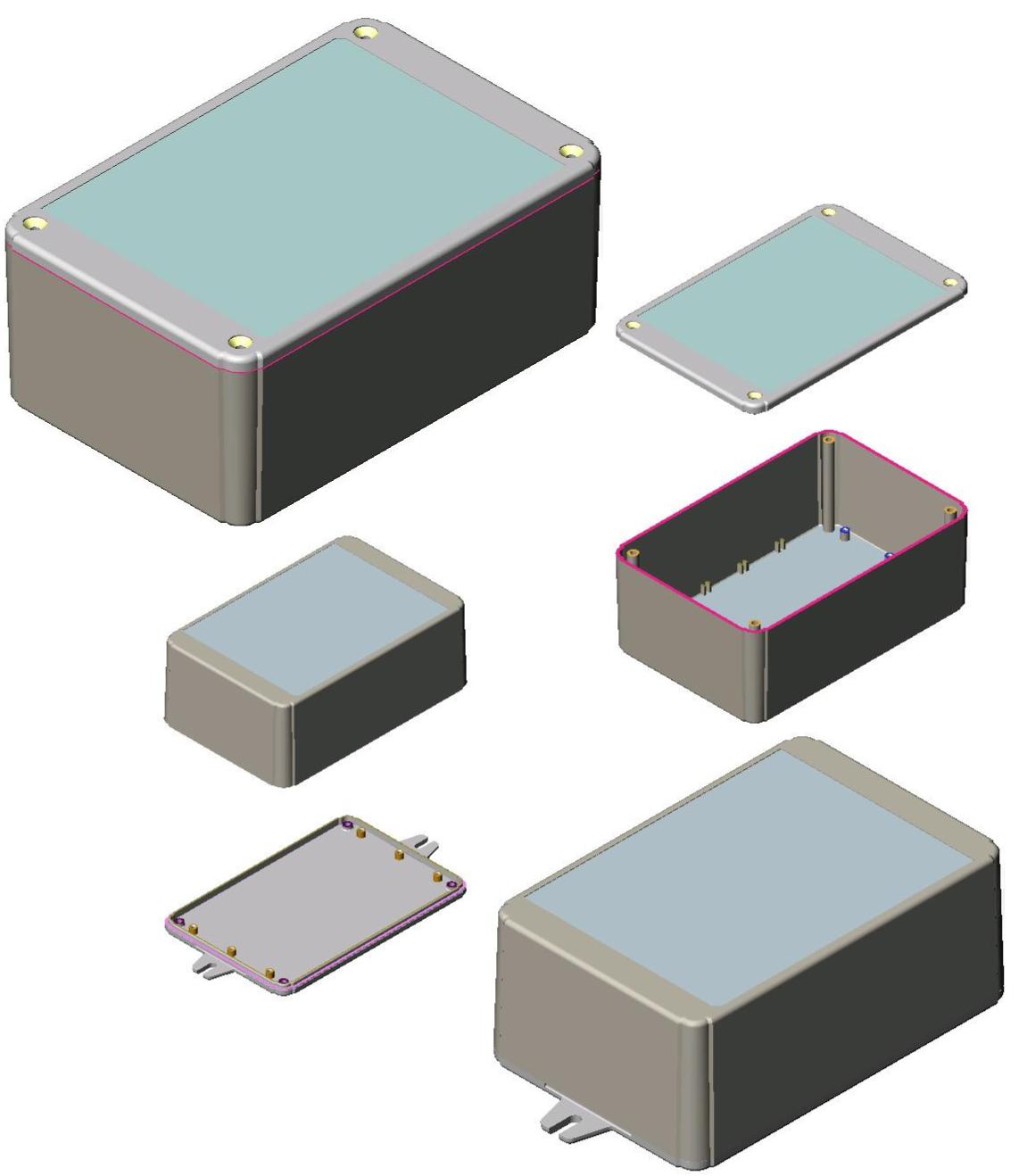

Universal designing of electronic project enclosures, structured as two parts.

14 sizes from 80 x 60 x 40 mm to 200 x 150 x 100 mm

Integral flange versions are available for all sizes as external mounting applications.

Made from high impact ABS (GP ABS) as standard material, ABS transparent, ABS flame retardant material upon request.

PCB mounting bosses at both of TOP and BASE.

Smooth top recessed area for labeling or membrane on both of TOP and BASE.

External Sizes L x W x H (mm)	Standard Version	Flange Version
80 x 60 x 30	RL6105	RL6105-F
80 x 60 x 40	RL6115	RL6115-F
105 x 65 x 30	RL6165	RL6165-F
105 x 65 x 40	RL6175	RL6175-F
125 x 80 x 40	RL6215	RL6215-F
125 x 80 x 50	RL6225	RL6225-F
125 x 100 x 60	RL6335	RL6335-F
125 x 100 x 90	RL6365	RL6365-F
150 x 100 x 60	RL6435	RL6435-F
150 x 100 x 90	RL6465	RL6465-F
175 x 125 x 70	RL6555	RL6555-F
175 x 125 x 100	RL6585	RL6585-F
200 x 150 x 70	RL6655	RL6655-F
200 x 150 x 100	RL6685	RL6685-F

* Top Lid designed with a rectangle smooth recessed area, for custom label, membrane switches or silkscreen printing custom logos and graphics directly.

* Molded Top & Bottom two parts, constructed with tongue and groove to meet the IP54 water resistance.

Customization Service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Finish: Silkscreen Printing, PAD Printing, Hot Stamp Printing & Painting.

• Insert Modification: Top cover recessed area could modify as customer's opening for quantity production.

(MOQ requested)

• Custom material and Custom Color are available up on request. (MOQ requested)

• Custom OEM and ODM enclosure projects are available up on request. (MOQ requested)

Material	Rate	UL rate	Temperature	Color	UV	Gasket
ABS	IP54	UL-94HB	–30 ~ +75℃	Light Gray	—	—
