Size:  65 x 60 x 40 mm.

  Top Recessed: 39 x 52 mm.

  Inner Size:  58 x 53 x 35 mm.

  Hardware:

  1. M3.5 SS Fixing screw x4

  2. M3 PCB mounting screw x4,

  3. Gasket x1.

Dimension Drawing

(   PDF  /  DWG  )

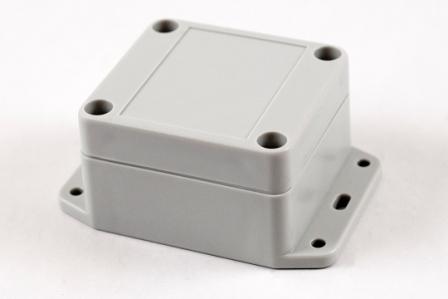

RP1020BF

  Off-White Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

  Transparent Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

  Transparent Polycarbonate TOP LID,

  LLight Gray ABS BOTTOM BASE.

  1.0mm thickness Sheet Metal Inner Plate.

  3.0mm thickness Black ABS Inner Plate.
