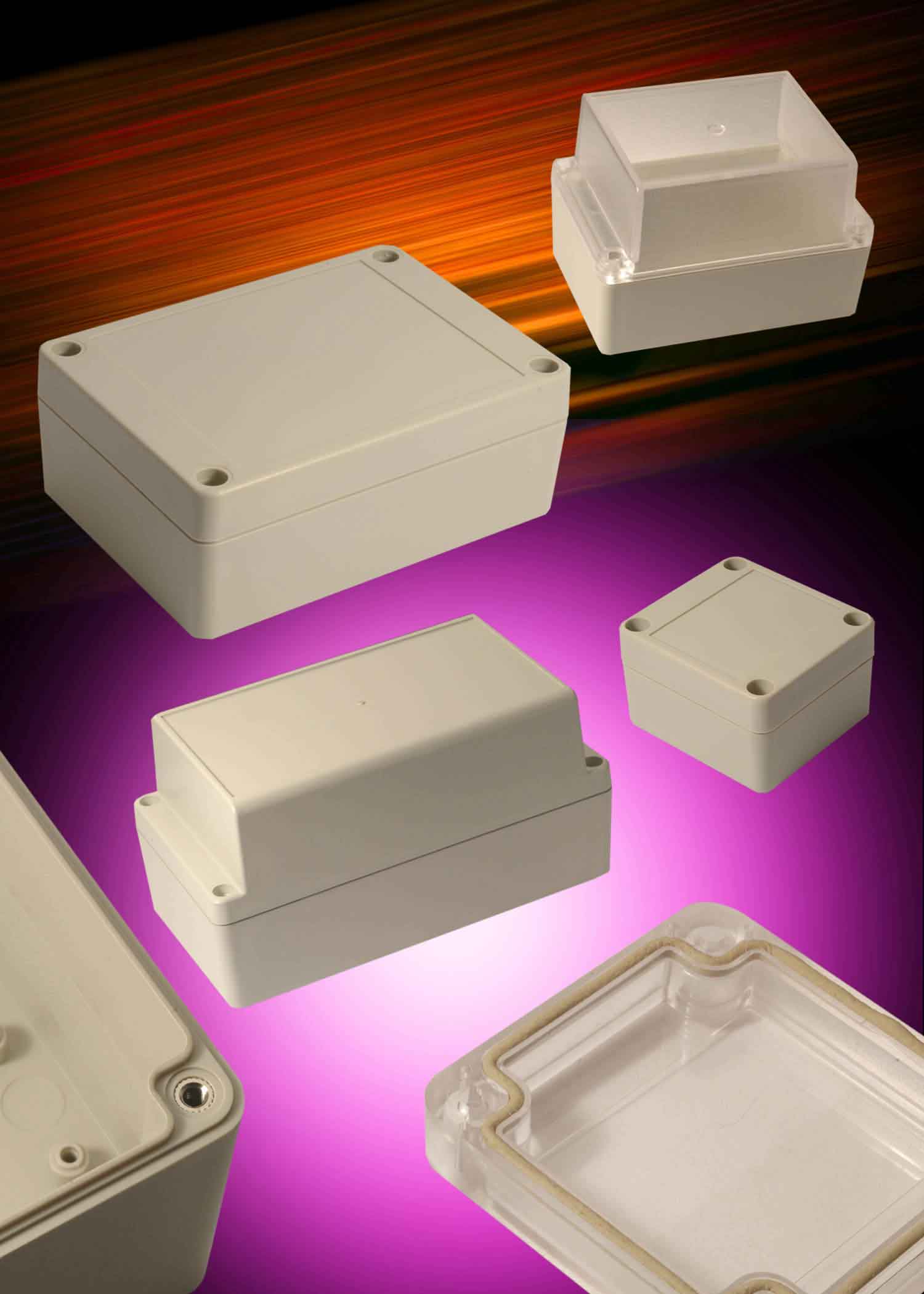

RP Series Sealed Enclosures

FEATURES:

* Two material supplied for different application.

ABS (UL-94HB) in Light Gray Color (RAL1035).

Polycarbonate (UL-94V2) in off-white color (RAL7035).

* All sizes are supplied with Clear Top Lid or Colored Top Lid.

* Polycarbonate material was a high performance thermoplastic, suitable for out-door using.

* Temperature Rate -

ABS : -30℃ ~ +80℃ (Unannealed)

PC : -40℃ ~ +135℃ (Unannealed)

* Top Lid designed with a rectangle smooth recessed area, for custom label, membrane switches or silkscreen printing custom logos and graphics directly.

* Molded Top & Bottom two parts construction with tongue and groove, water and dust resistant rate up to IP65 for EPDM Gasket, IP67 for Silicon Gasket .

SIZE ( L x W x H )	Polycarbonate		ABS
65 x 60 x 28 mm.	RP1010	RP1010C	RP1015	RP1015C
65 x 60 x 40 mm.	RP1020	RP1020C	RP1025	RP1025C
95 x 50 x 40 mm.	RP1030	RP1030C	RP1035	RP1035C
95 x 50 x 50 mm.	RP1040	RP1040C	RP1045	RP1045C
85 x 80 x 40 mm.	RP1050	RP1050C	RP1055	RP1055C
85 x 80 x 55 mm.	RP1060	RP1060C	RP1065	RP1065C

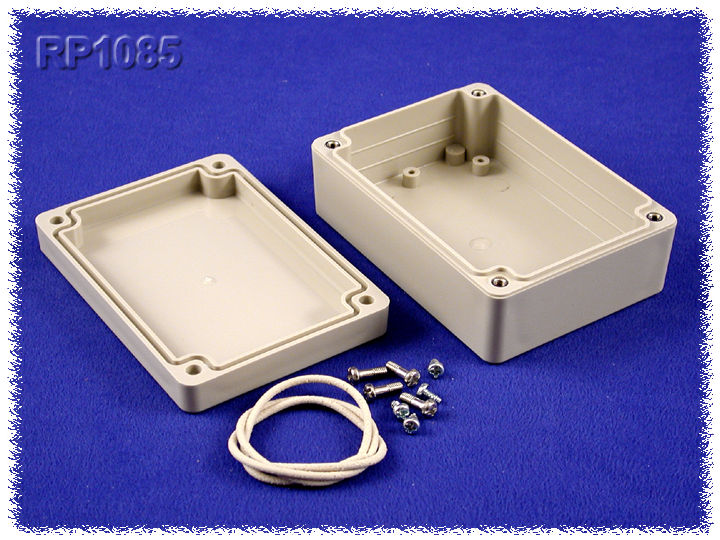

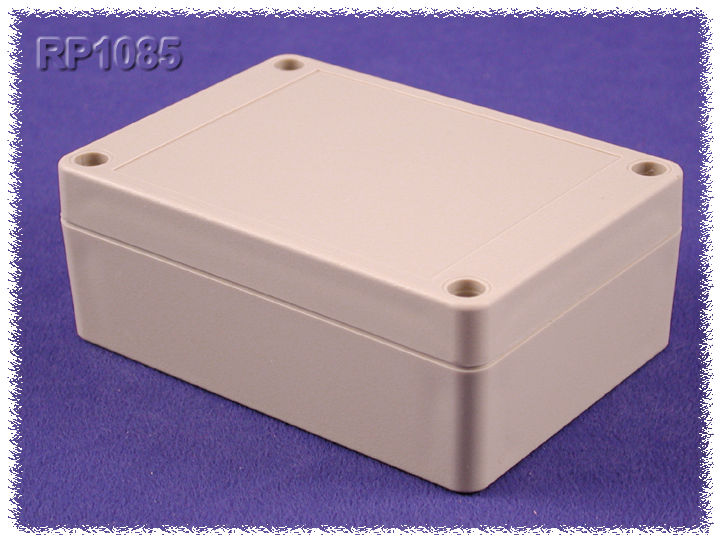

105 x 75 x 40 mm.	RP1080	RP1080C	RP1085	RP1085C
105 x 75 x 55 mm.	RP1090	RP1090C	RP1095	RP1095C
125 x 85 x 40 mm.	RP1120	RP1120C	RP1125	RP1125C
125 x 85 x 55 mm.	RP1130	RP1130C	RP1135	RP1135C
125 x 85 x 70 mm.	RP1140	RP1140C	RP1145	RP1145C
125 x 85 x 85 mm.	RP1150	RP1150C	RP1155	RP1155C
165 x 85 x 40 mm.	RP1160	RP1160C	RP1165	RP1165C
165 x 85 x 55 mm.	RP1170	RP1170C	RP1175	RP1175C

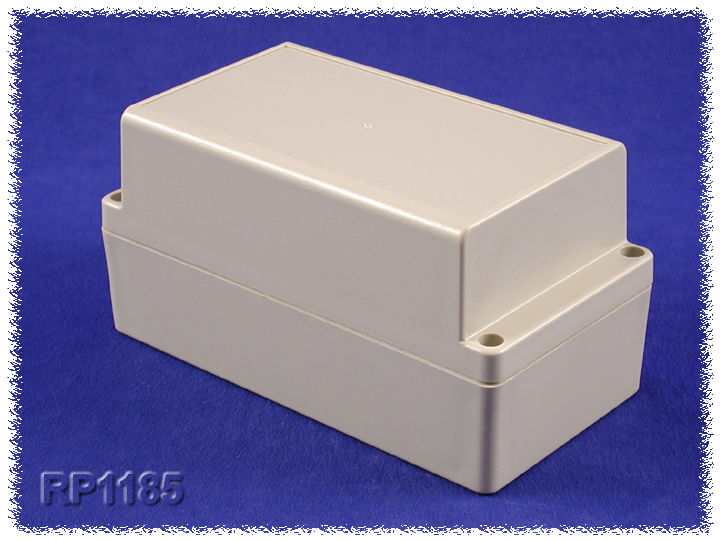

165 x 85 x 85 mm.	RP1180	RP1180C	RP1185	RP1185C
165 x 85 x 70 mm.	RP1190	RP1190C	RP1195	RP1195C
145 x 105 x 40 mm.	RP1200	RP1200C	RP1205	RP1205C
145 x 105 x 60 mm.	RP1210	RP1210C	RP1215	RP1215C
165 x 125 x 55 mm.	RP1230	RP1230C	RP1235	RP1235 C
165 x 125 x 75 mm.	RP1240	RP1240C	RP1245	RP1245C
186 x 146 x 55 mm.	RP1270	RP1270C	RP1275	RP1275C
186 x 146 x 75 mm.	RP1280	RP1280C	RP1285	RP1285C
186 x 146 x 90 mm.	RP1370	RP1370C	RP1375	RP1375C
186 x 146 x 110 mm.	RP1380	RP1380C	RP1385	RP1385C
220 x 165 x 60 mm.	RP1450	RP1450C	RP1455	RP1455C
220 x 165 x 85 mm.	RP1460	RP1460C	RP1465	RP1465C
250 x 200 x 90 mm.	RP1610	RP1610C	RP1615	RP1615C
250 x 200 x 130 mm.	RP1630	RP1630C	RP1635	RP1635C

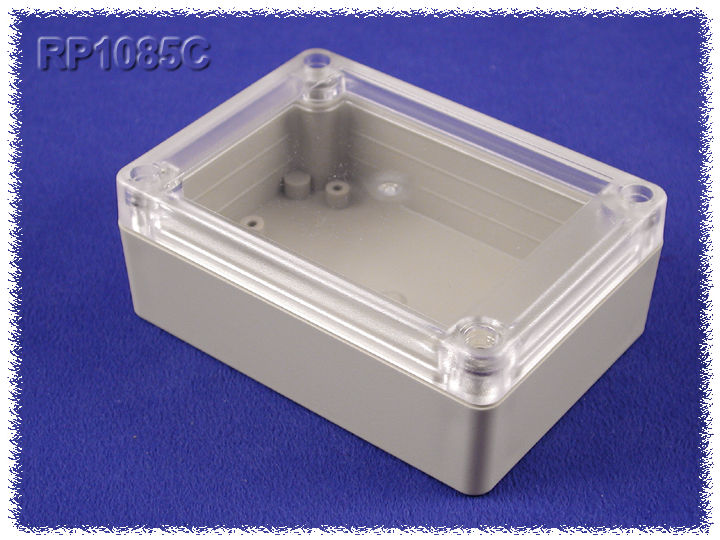

** Option: C – All sizes are available for PC clear Top cover (UV stabilized) .
STA/STC – Inner mounting plate is available for all sizes (sheet Metal or ABS) .
MF0045 / MF0065 – External Wall Mounting Feet.

Customization Service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Finish: Silkscreen Printing, PAD Printing, Hot Stamp Printing & Painting.

• Insert Modification: Top cover recessed area could modify as customer's opening for quantity production.

(MOQ requested)

• Custom material and Custom Color are available up on request. (MOQ requested)

• Custom OEM and ODM enclosure projects are available up on request. (MOQ requested)

Material	Rate	UL rate	Temperature	Color	UV	Gasket
Polycarbonate	IP65	UL-94V2	–40 ~ +135℃	Off-White	O	EPDM
ABS	IP65	UL-94HB	–30 ~ +80℃	Light Gray	—	EPDM
Polycarbonate	IP67	UL-94V2	–40 ~ +135℃	Off-White	O	Silicon
ABS	IP67	UL-94HB	–30 ~ +80℃	Light Gray	—	Silicon
