Size:  115 x 65 x 40 mm.

    Inner Size:  108 x 58 x 35 mm.

  Hardware:

  1. M4 SS Fixing screw x4

  2. M3 PCB mounting screw x4,

  3. Gasket x1.

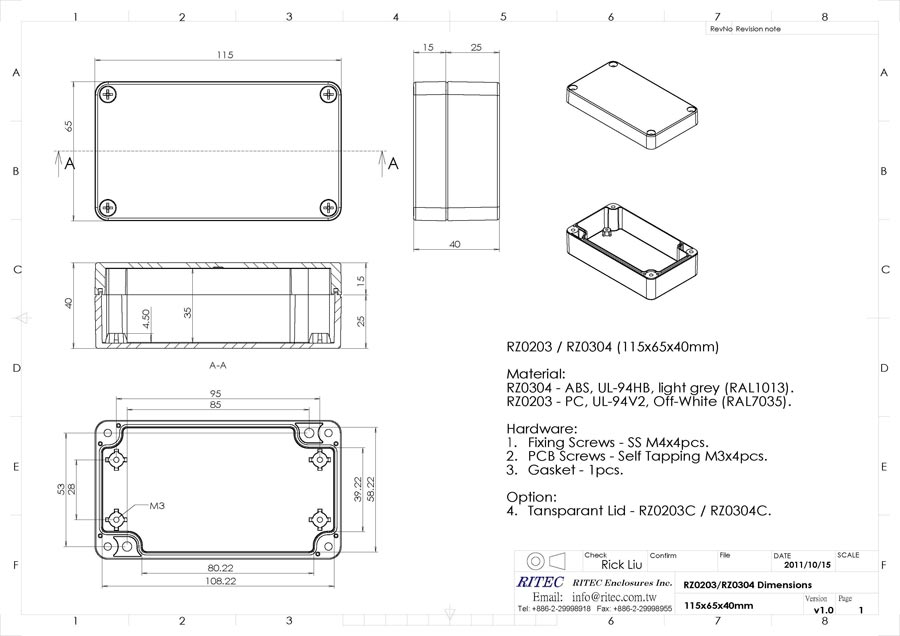

Dimension Drawing

(   PDF  /  DWG  )

RZ0203

  Off-White Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

RZ0203C

  Transparent Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

RZ0304

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

RZ0304C

  Transparent Polycarbonate TOP LID,

  Light Gray ABS BOTTOM BASE.
