Size:  115 x 65 x 55 mm.

    Inner Size:  107.5 x 57.5 x 49.5 mm.

  Hardware:

  1. M4 SS Fixing screw x4

  2. M3 PCB mounting screw x4,

  3. Gasket x1.

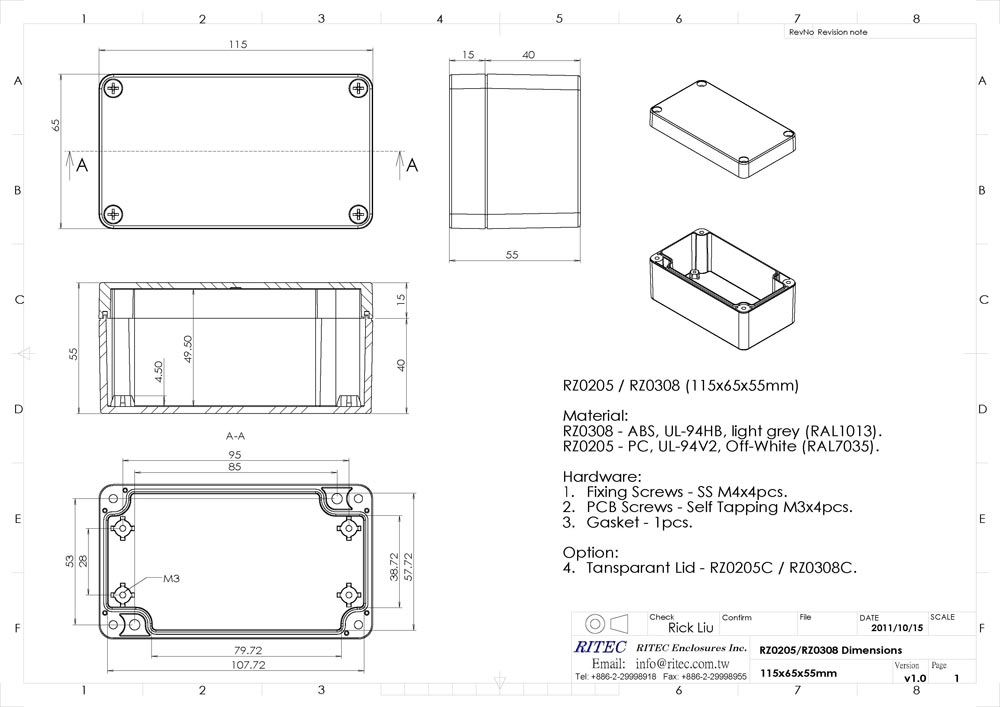

Dimension Drawing

(   PDF  /  DWG  )

RZ0205

  Off-White Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

RZ0205C

  Transparent Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

RZ0308

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

RZ0308C

  Transparent Polycarbonate TOP LID,

  Light Gray ABS BOTTOM BASE.
