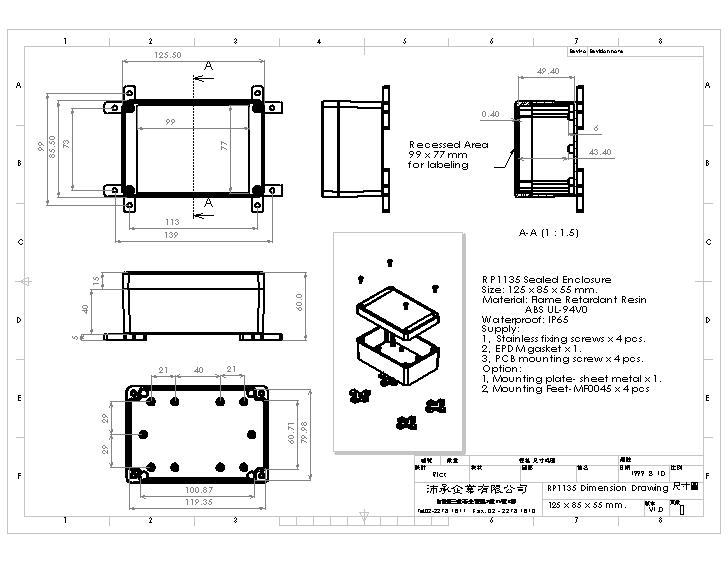

(Dimension
Drawing)
¡@
Size:
125 x 85 x 55 mm.
Top
Recessed: 99 x 77 mm.
Standard
Material:
ABS
UL-94V0 in light Gray.
Polycarbonate
in Off White.
Supply
included:
Stainless
Fixing screws, PCB mounting screws, Gasket. |
RP1130 |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
|
| RP1130C |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
|
RP1130-MP |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|
| RP1130C-MP |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|
| RP1135 |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1135C |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1135-MP |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
| RP1135C-MP |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
