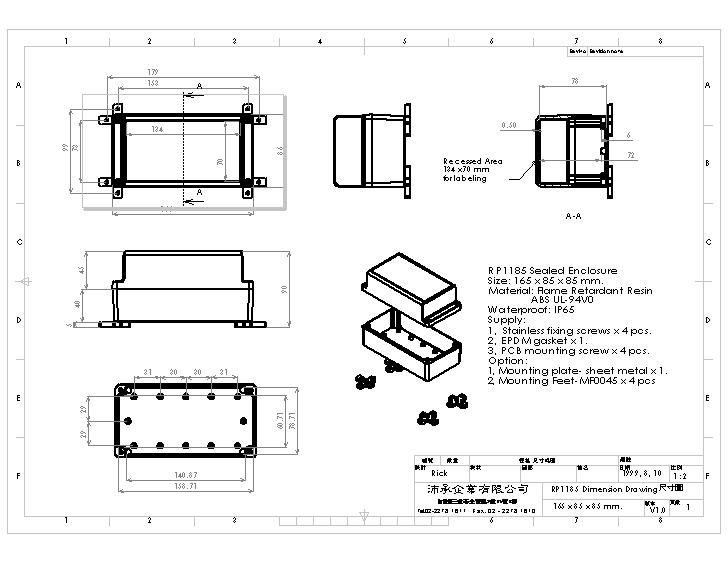

(Dimension
Drawing)
¡@
Size:
165 x 85 x 85 mm.
Top
Recessed: 70 x 134 mm.
Standard
Material:
ABS
UL-94V0 in light Gray.
Polycarbonate
in Off White.
Supply
included:
Stainless
Fixing screws, PCB mounting screws, Gasket. |
RP1180 |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
|
| RP1180C |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
|
RP1180-MP |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|
| RP1180C-MP |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|

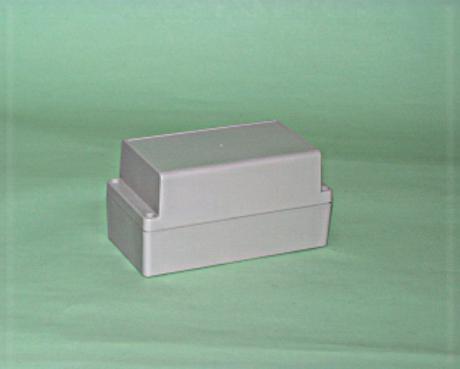

| RP1185 |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1185C |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1185-MP |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
| RP1185C-MP |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
