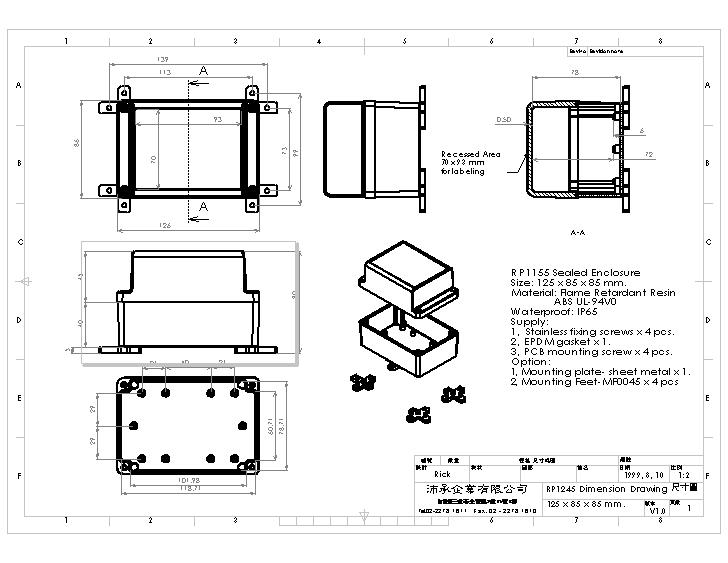

(Dimension
Drawing)
¡@
Size:
125 x 85 x 85 mm.
Top
Recessed: 93 x 70 mm.
Standard
Material:
ABS
UL-94V0 in light Gray.
Polycarbonate
in Off White.
Supply
included:
Stainless
Fixing screws, PCB mounting screws, Gasket. |
RP1150 |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
|
| RP1150C |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
|
RP1150-MP |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|
| RP1150C-MP |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|
| RP1155 |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1155C |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1155-MP |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
| RP1155C-MP |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
