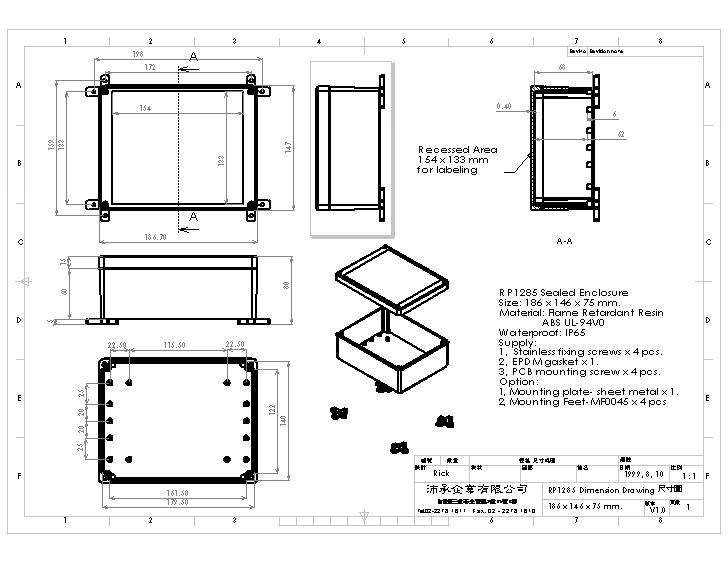

(Dimension
Drawing)
PDF file ¡@
Size:
186 x 146 x 75 mm.
Top
Recessed: 154 x 133 mm.
Standard
Material:
ABS
UL-94V0 in light Gray.
Polycarbonate
in Off White.
Supply
included:
Stainless
Fixing screws, PCB mounting screws, Gasket. |
RP1280 |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
|
| RP1280C |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
|
RP1280-MP |
Polycarbonate
(PC) off-white top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|
| RP1180C-MP |
Polycarbonate
(PC) clear top lid,
Polycarbonate
(PC) off-white bottom housing.
sheet
steel inner mounting plate
|

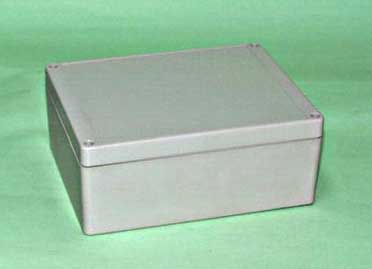

| RP1285 |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1285C |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
|
| RP1285-MP |
ABS
UL-94V0 light gray top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
| RP1285C-MP |
Polycarbonate
(PC) clear top lid,
ABS
UL-94V0 light gray bottom housing.
sheet
steel inner mounting plate
|
