Size:   200 x 150 x 100 mm.

  Top Recessed:  165 x 135 mm.

  Inner Size:  191.5 x 141.5 x 93.7 mm.

  Hardware:

  1. M3 Fixing screw x4

  2. M2.6 PCB mounting screw x4,

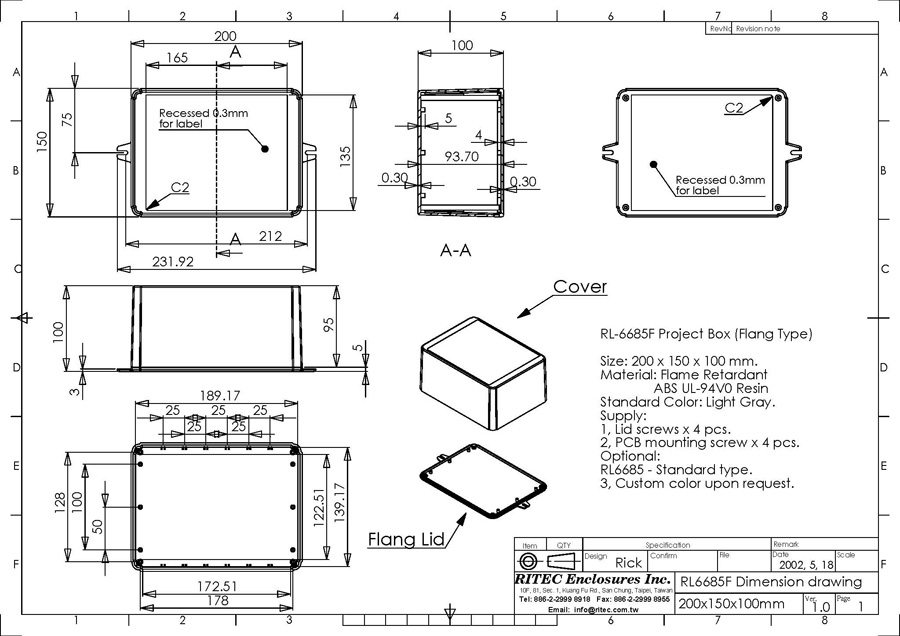

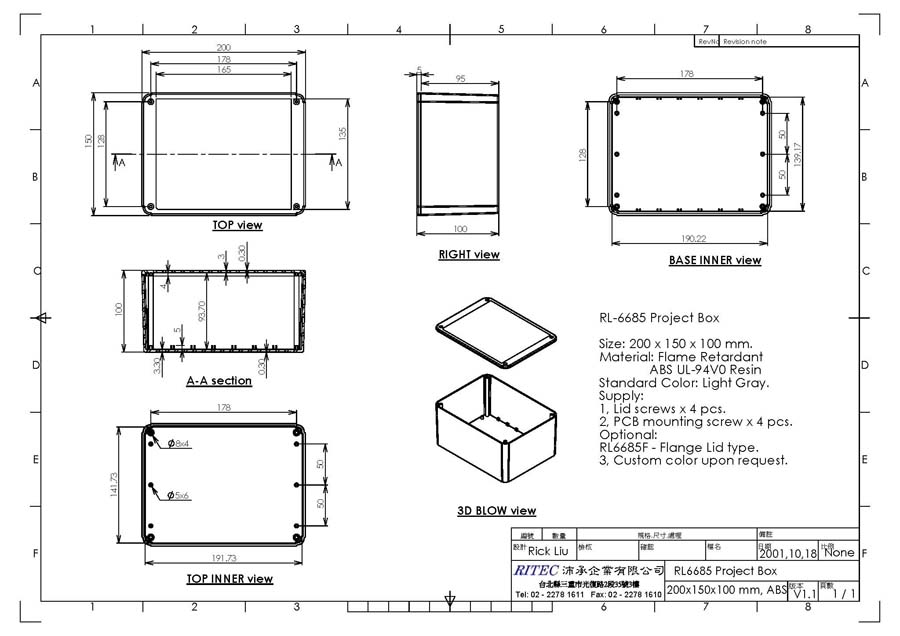

Dimension Drawing

RL6685

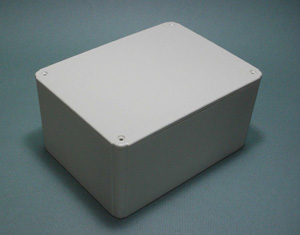

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

(   PDF  /  DWG  )

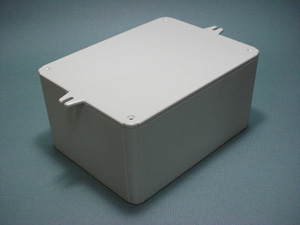

  Light Gray ABS TOP Flange LID,

  Light Gray ABS BOTTOM BASE.

(   PDF  /  DWG  )
