RL Series Project Boxes
Size: 150 x 100 x 60 mm.
Top Recessed: 120 x 90 mm.
Inner Size: 142 x 92 x 54.4 mm.
Hardware:
1. M3 Fixing screw x4
2. M2.6 PCB mounting screw x4,

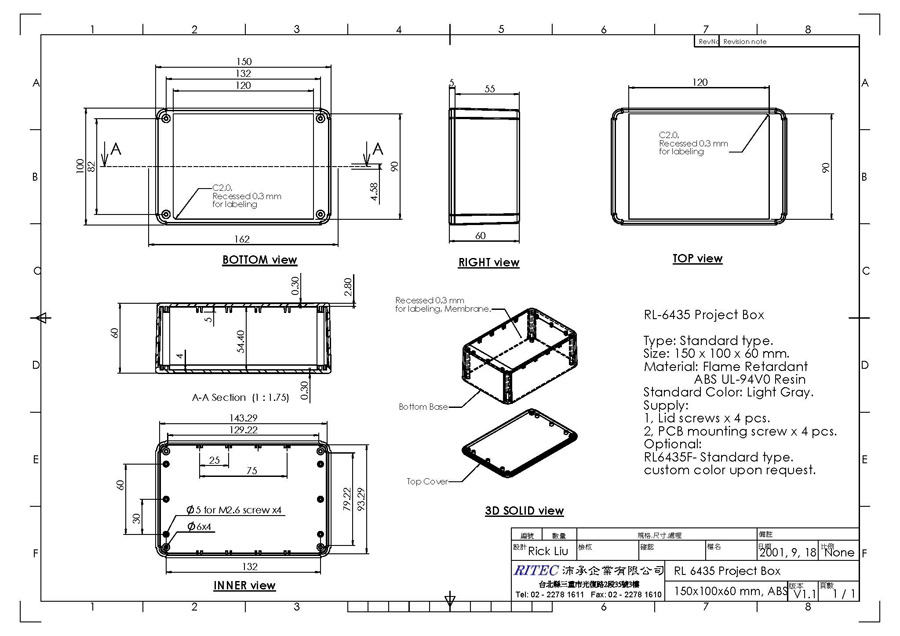

Dimension Drawing
RL6435
Light Gray ABS TOP LID,
Light Gray ABS BOTTOM BASE.
( PDF / DWG )

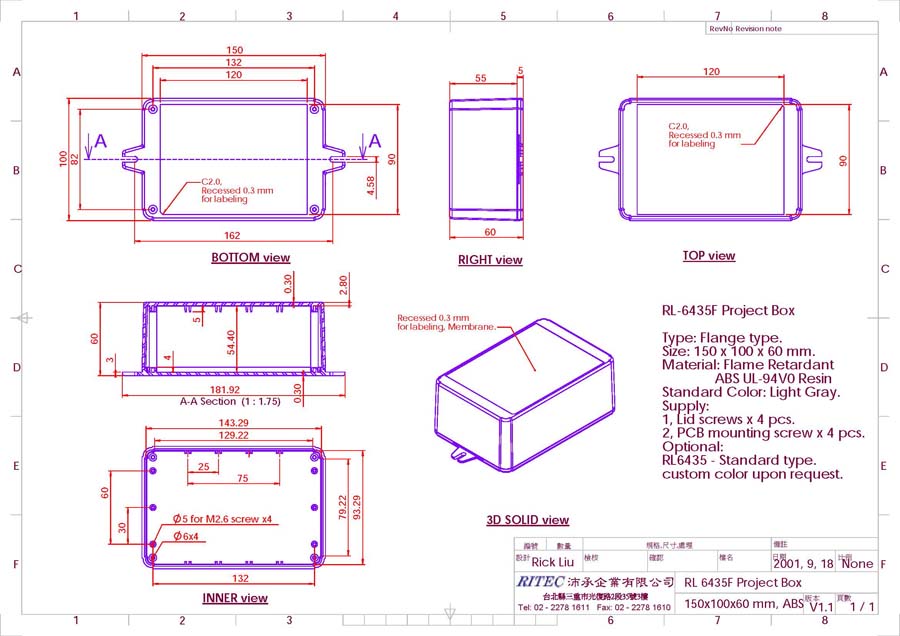

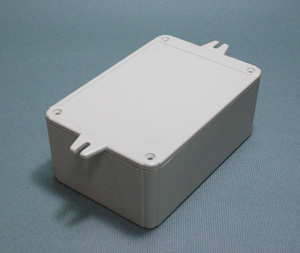

Light Gray ABS TOP Flange LID,
