Size:  125 x 80 x 35 mm.

  Top Recessed:   96 x 70 mm.

  Inner Size:  118.8 x 73.8 x 29.4 mm.

  Hardware:

  1. M2.6 Fixing screw x4

  2. M2.6 PCB mounting screw x4,

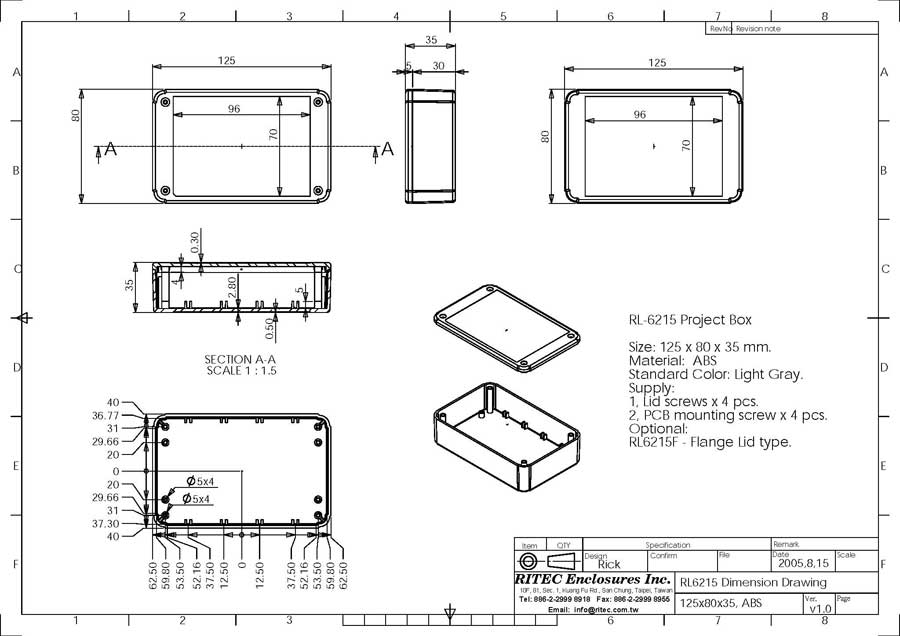

Dimension Drawing

RL6215

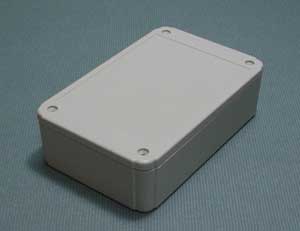

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

(   PDF  /  DWG  )

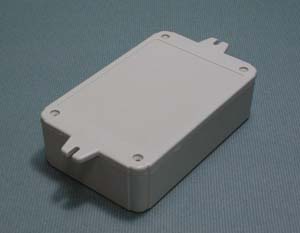

  Light Gray ABS TOP Flange LID,

  Light Gray ABS BOTTOM BASE.

(   PDF  /  DWG  )
