Size:  105 x 105 x 55 mm.

  Top Recessed:  80 x 80 mm.

  Inner Size:  159 x 99 x 73 mm.

  Hardware:

  1. M4 SS Fixing screw x4

  2. M3 PCB mounting screw x4,

  3. Gasket x1.

Dimension Drawing

(   PDF  /  DWG  )

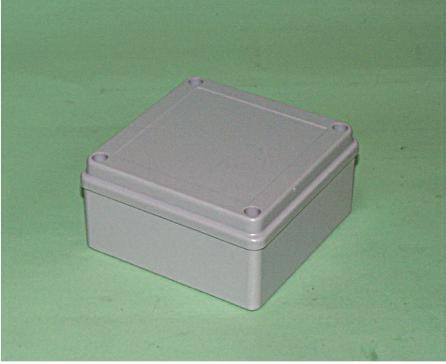

RS5105

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

  (with Gasket version)

RS5105N

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

  (without Gasket version)

   1.0mm thickness Sheet Metal Inner Plate.

   3.0mm thickness Black ABS Inner Plate.
