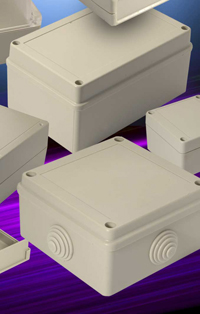

RS Series  Sealed Enclosures                      back to PRODUCTS

　

Watertight up to IP65 (IEC 529)

. Molded in a varies range of new stylish, double isolated, high quality sealed enclosures. Designed for industry and electronic installation, control devices, junction box, switching box, wiring box, etc.

. The fixing screws are design to captive in the lid and can not fall out or loosen.

. The lid recessed area which available to fit on label or membrane and is smooth for silkscreen printing.

 ☆ Non-Sealed version:  No Gasket, suitable for in-door applications.

 ☆ Sealed version:    with Gasket, sealed to IP65, suitable for dust & water proof.



*Standard Material: ABS, UL-94HB, in light Gray color.

　

SIZE ( L x W x H )

Sealed

Non-Sealed

 105 x 105 x  55 mm.

RS5105

RS5105N

154 x 114 x 77 mm.

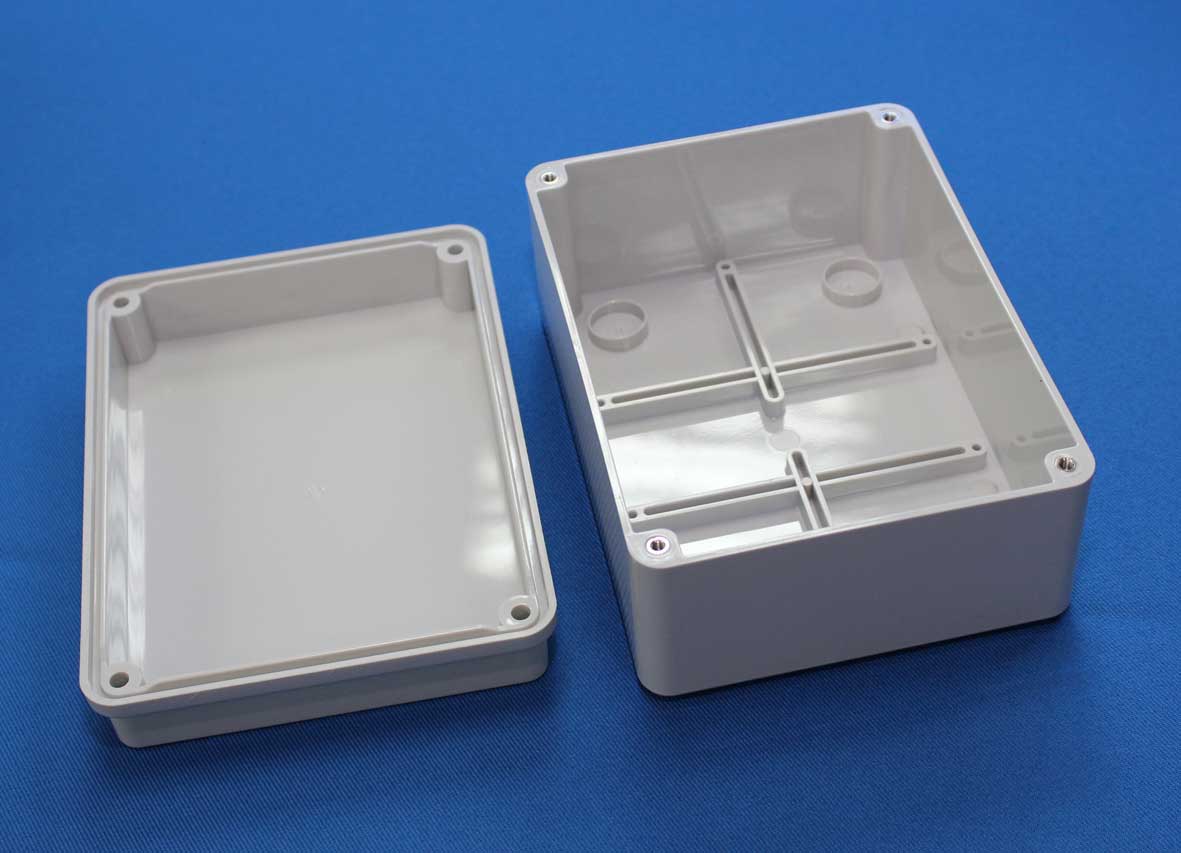

RS44206

RS44206N

165 x 105 x  78 mm.

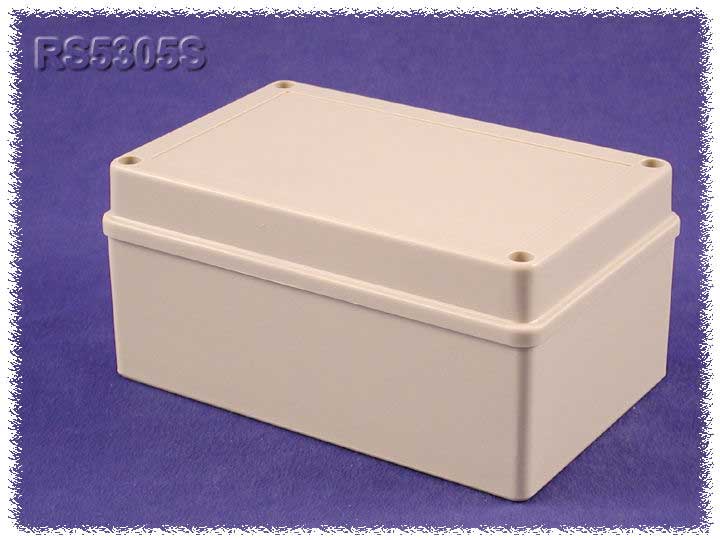

RS5305

RS5305N

250 x 200 x  90 mm.

RS5705

RS5705N

250 x 200 x 130 mm.

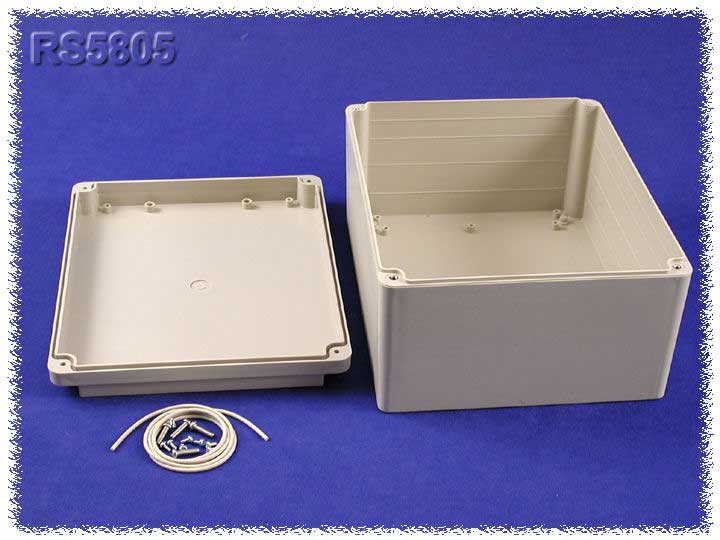

RS5805

RS5805N

 ** Option:

  Mounting Plate – STA (Sheet Metal, 1.0mm) or STC (ABS Black, 3.0mm) .

Secondary Operate service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Printing: Silkscreen printing, Painting.

• Modification: Top cover recessed area could be modified by custom cut-out opening

                    for quantity production.

• Custom material and custom color are available up on request.

• Custom OEM and ODM enclosure projects are available up on request.
