Size:  220 x 165 x 60 mm.

  Top Recessed:  180 x 150 mm.

  Inner Size:  213.7 x 158.7 x 53.0 mm.

  Hardware:

  1. M3.5 SS Fixing screw x4

  2. M3 PCB mounting screw x4,

  3. Gasket x1.

Dimension Drawing

(   PDF  /  DWG  )

RP1450

  Off-White Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

  Transparent Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

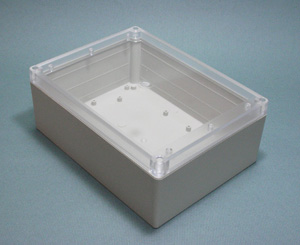

  Transparent Polycarbonate TOP LID,

  LLight Gray ABS BOTTOM BASE.

  Off-White Polycarbonate Mounting Feet.

  Light Gray ABS Mounting Feet.

  1.0mm thickness Sheet Metal Inner Plate.

  3.0mm thickness Black ABS Inner Plate.
