Size:  165 x 125 x 75 mm.

  Top Recessed:  138.5 x 116 mm.

  Inner Size:  157.5 x 117 x 68.5 mm.

  Hardware:

  1. M3.5 SS Fixing screw x4

  2. M3 PCB mounting screw x4,

  3. Gasket x1.

Dimension Drawing

(   PDF  /  DWG  )

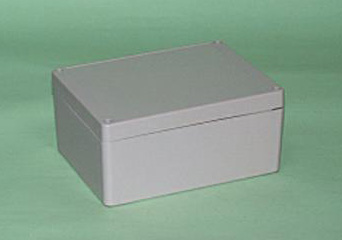

RP1240

  Off-White Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

  Transparent Polycarbonate TOP LID,

  Off-White Polycarbonate BOTTOM BASE.

  Light Gray ABS TOP LID,

  Light Gray ABS BOTTOM BASE.

  Transparent Polycarbonate TOP LID,

  LLight Gray ABS BOTTOM BASE.

  Off-White Polycarbonate Mounting Feet.

  Light Gray ABS Mounting Feet.

  1.0mm thickness Sheet Metal Inner Plate.

  3.0mm thickness Black ABS Inner Plate.
