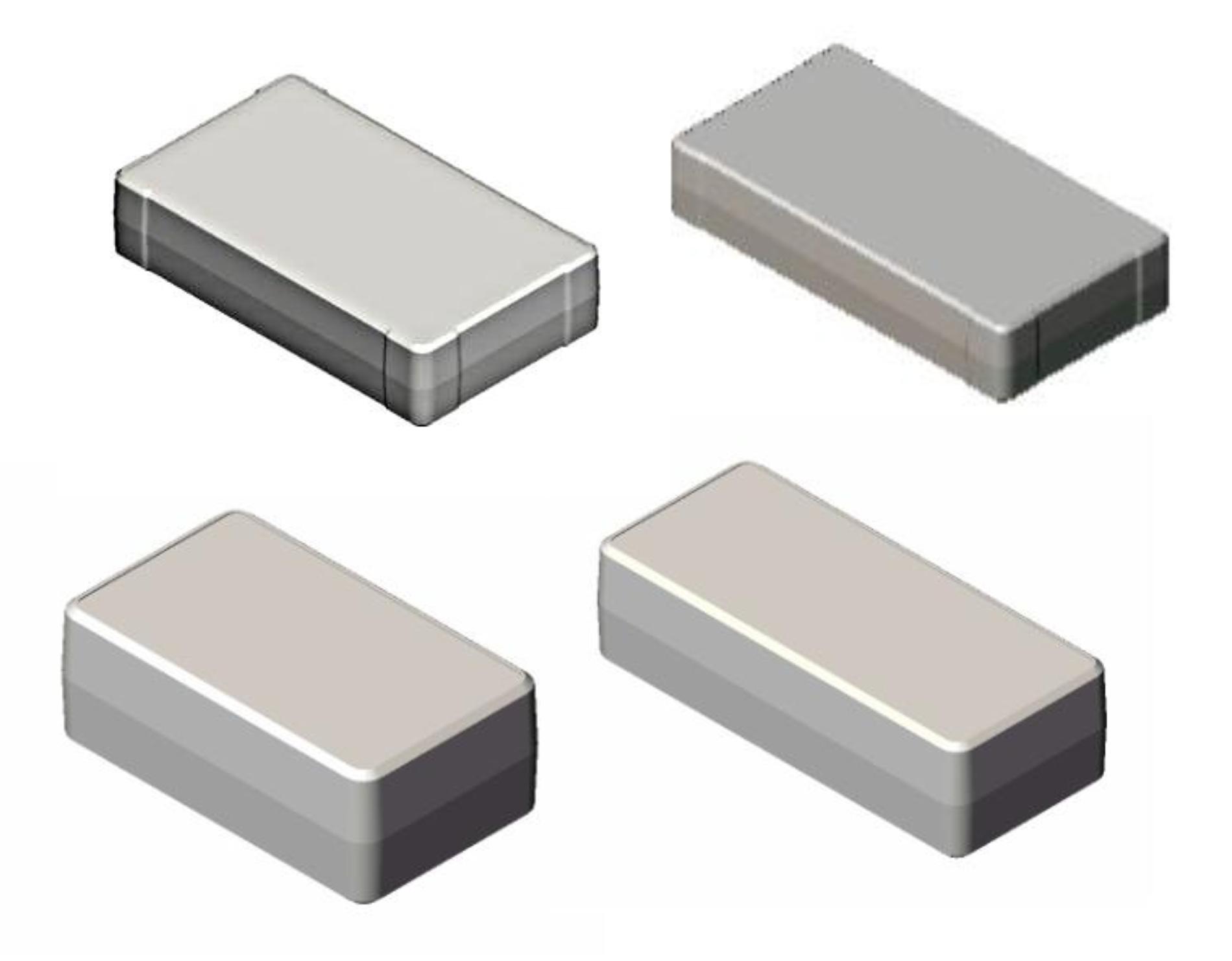

RL series
PROJECT BOX
. Three parts construction, assemblies as top cover, bottom cover with
front end panel.
|
.
UL
flame retardant material molded.
ABS
Flame
Retardant (UL-94V0)
.
.
Temperature Rate -
ABS
: -40℃
~ +75℃
.
Full unit supplied in same color as light gray color as standard color.
|
|
|
.
Top cover and bottom cover designed with a interchangeable insert, could
be modified to molded custom cut out opening for quantity production
applications. This rectangle area could be modified to meet any custom
designing cutout opening and smooth recessed for custom label, membrane
switches or silkscreen printing custom logos and graphics directly.
.
Two different end panel offered various electronic devices requirements.
a,
ABS smooth panel - easy to be machined like drill, mill, punch to make
opening for connectors, switches, etc.
b,
Infra-Red panel - dark red transparent PMMA material mold for infra-red
sensor or receiver, LED display moudules.
|
|
SIZE
(
L x W x H )
|
ABS
UL-94V0
|
|
105
x 65 x 40 mm.
|
RL6015
|
|
145
x 65 x 40
mm.
|
RL6035
|
|
180
x 100 x 40 mm.
|
RL6055
|
|
200
x 100 x 40 mm.
|
RL6065
|
Secondary Operate service:
•Machining: Drilling, Milling, Punching for
custom cut-out opening.
•Printing:
Silkscreen printing, Painting.
•Modification:
Top cover, bottom cover and front end panel have interchangeable insert could be modified by custom cut-out opening
for quantity production.
•Custom
material and custom color are available up on request.
Custom OEM and ODM enclosure projects are available up on request.
|
