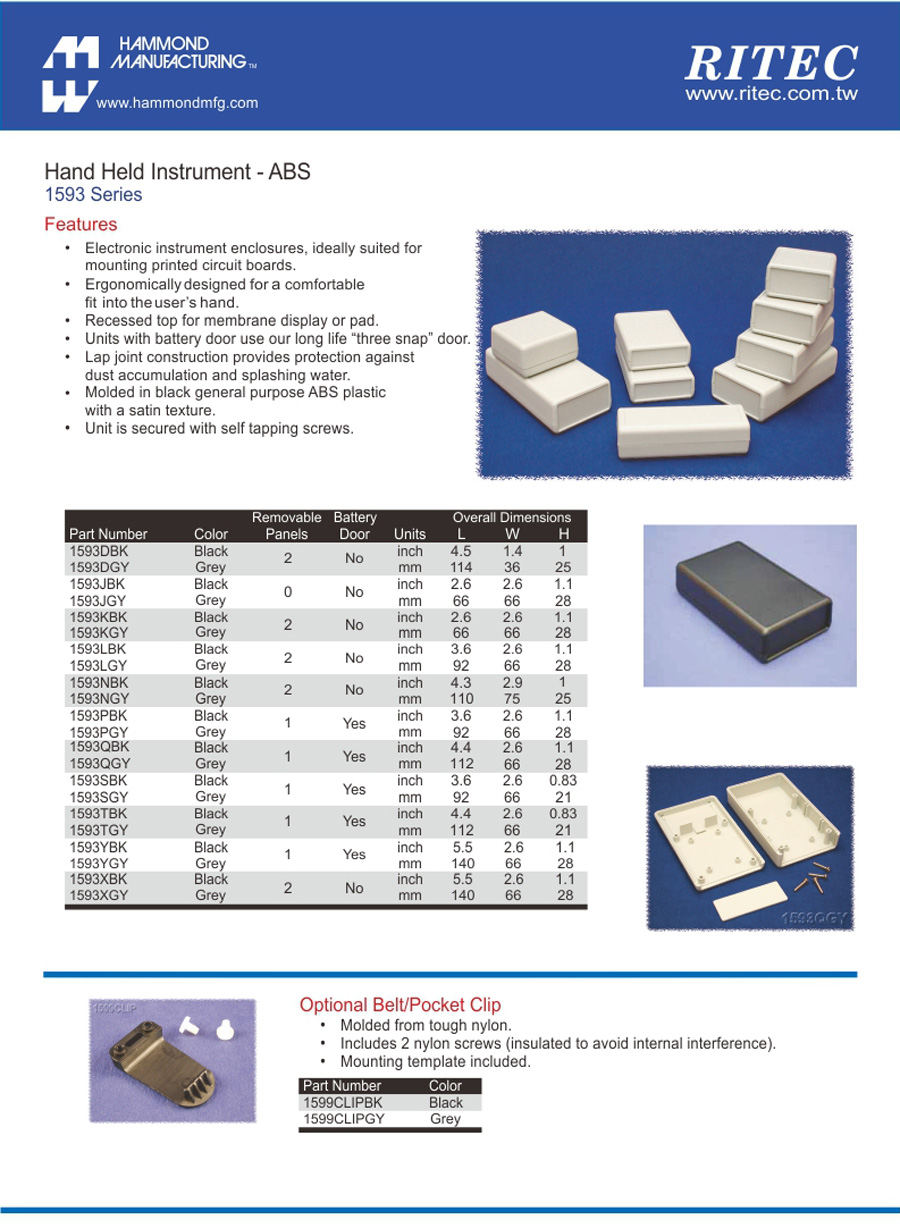

1593 Series

click to enlarge

Key Features:

Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Ergonomically designed for a comfortable fit into the user旧 hand.
Recessed top for membrane display or pad.
Units with battery door use our long life "three snap" door.
Lap joint construction provides protection against dust accumulation and splashing water.
Molded in a choice of black or grey general purpose ABS plastic with a satin texture.
Translucent Blue version also available link here
Unit is secured with self tapping screws.
Black enclosures include black screws, grey includes nickel finish screws.
Part numbers 1593NBK & 1593NGY are specifically designed for smart card readers
Link here to photo tables of each part number (shown in grey)

Part Number	Color	Reader File	AutoCAD .dwg File (zipped)	3D Solid Model .igs & .stp files (zipped)	Removable Panels	Battery Door	Units	Length	Width	Enclosure Depth (assembled)
1593KBK 1593KGY	Black Grey	223K	231K	526K	2	No	Inches	2.6	2.6	1.1
							mm	66	66	28
1593JBK 1593JGY	Black Grey	260K	146K	447K	0	No	Inches	2.6	2.6	1.1
							mm	66	66	28
1593ARBK 1593ARGY	Black Grey	279K	-	-	2	No	Inches	2.95	2.91	1.06
							mm	75	74	27
1593SBK 1593SGY	Black Grey	275K	205K	489K	1	Yes	Inches	3.6	2.6	0.83
							mm	92	66	21
1593PBK 1593PGY	Black Grey	275K	209K	522K	1	Yes	Inches	3.6	2.6	1.1
							mm	92	66	28
1593LBK 1593LGY	Black Grey	309K	230K	519K	2	No	Inches	3.6	2.6	1.1
							mm	92	66	28
1593BBBK 1593BBGY	Black Grey	272K	145K	230K	2	No	Inches	3.75	3.0	1.18
							mm	95	77	30
1593NBK 1593NGY	Black Grey	313K	320K	438K	2	No	Inches	4.3	2.9	1.0
							mm	110	75	25
1593TBK 1593TGY	Black Grey	285K	214K	640K	1	Yes	Inches	4.4	2.6	0.83
							mm	112	66	21
1593QBK 1593QGY	Black Grey	293K	217K	596K	1	Yes	Inches	4.4	2.6	1.1
							mm	112	66	28
1593DBK 1593DGY	Black Grey	282K	250K	384K	2	No	Inches	4.5	1.4	1.0
							mm	114	36	25
1593YBK 1593YGY	Black Grey	417K	225K	440K	1	Yes	Inches	5.5	2.6	1.1
							mm	140	66	28
1593XBK 1593XGY	Black Grey	310K	225K	548K	2	No	Inches	5.5	2.6	1.1
							mm	140	66	28

Link here to photo tables of each part number (shown in grey)

NOTES:

The 1593DBK , 1593DGY & 1593KBK, 1593KGY & 1593LBK, 1593LGY & 1593NBK, 1593NGY & 1593XBK, 1593XGY include two extra panels that are rounded to match profile of case.
The 1593NBK, 1593NGY are designed to house smart card readers.
Due to their low profile design, the 1593S & 1593T models will only accept AAA batteries. The two AAA battery holder kit (below) is the largest holder that will fit.

catalog pages on this series (195K) 9C-1593.pdf

　

Accessories

Infared Panels:

Infared Panel

Infrared panels (to replace included panels) - Part Number 1593DIR10 (bag of 10). For model "D" only.
Infrared panels (to replace included panels) - Part Number 1593NIR10 (bag of 10). For models "N" only.
Infrared panels (to replace included panels) - Part Number 1593PIR10 (bag of 10). For models "K, L, P, Q, Y & X" only.
Infrared panels (to replace included panels) - Part Number 1593SIR10 (bag of 10). For models "S & T" only.

ProtoBoard Printed Circuit Boards:

　

click to enlarge

High quality FR4 glass epoxy board.
Specifically designed to fit enclosures shown in the table below.(photo shows a 1593KPCB mounted in a 1593KGY).
Mounting screws included
Lead free, etched copper PCB (single sided) with a flux coating for easy soldering.
0.042" holes drilled on 0.1" centers.
For more information link to the BPS (BusBoard Prototype Systems) website www.busboard.net.

Replacement Screws:

Replacement assembly screws (fits 1593SGY & 1593TGY sizes ONLY) - self tapping, oval head type, #4 x 0.625� (15.9 mm)
1593MS100 - Package of 100.
Replacement assembly screws (fits 1593DGY 1593JGY, 1593KGY, 1593LGY, 1593NGY, 1593PGY, 1593QGY, 1593XGY & 1593YGY sizes ONLY) - self tapping, oval head type, #4 x 0.75� (19.1 mm)
1593QS100 - Package of 100.
Replacement black assembly screws (fits 1593SBK & 1593TBK sizes ONLY) - self tapping, oval head type, #4 x 0.625� (15.9 mm)
1593MS100BK - Package of 100.
Replacement black assembly screws (fits 1593DBK, 1593JBK, 1593KBK, 1593LBK, 1593NBK, 1593PBK, 1593QBK, 1593XBK & 1593YBK sizes ONLY) - self tapping, oval head type, #4 x 0.75� (19.1 mm)
1593QS100BK - Package of 100.

Internal Accessory Screws:

To mount P.C. boards into standoffs (#4 x 1/4" pan head) P/N 1593ATS50 (qty. 50), P/N 1593ATS100 (qty.100).

Battery Holder Kits:

Link here for pictures & more details

Belt / Pocket Clip Option:
　

Part Number	Color	Reader File	AutoCAD .dxf File (zipped)	3D Solid Model .igs & .stp files (zipped)
1599CLIP	Black	173K	109K	81K
1599CLIPGY	Grey	173K	109K	81K

Exactly what you are looking for???
Link to our stocking distributors - most have "on-line" pricing, stock check and ordering!!!

Order from your favorite distributor
　

Customization Service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Finish: Silkscreen Printing, PAD Printing, Hot Stamp Printing & Painting.

• Insert Modification: Top cover recessed area could modify as customer's opening for quantity production.

(MOQ requested)

• Custom material and Custom Color are available up on request. (MOQ requested)

• Custom OEM and ODM enclosure projects are available up on request. (MOQ requested)
