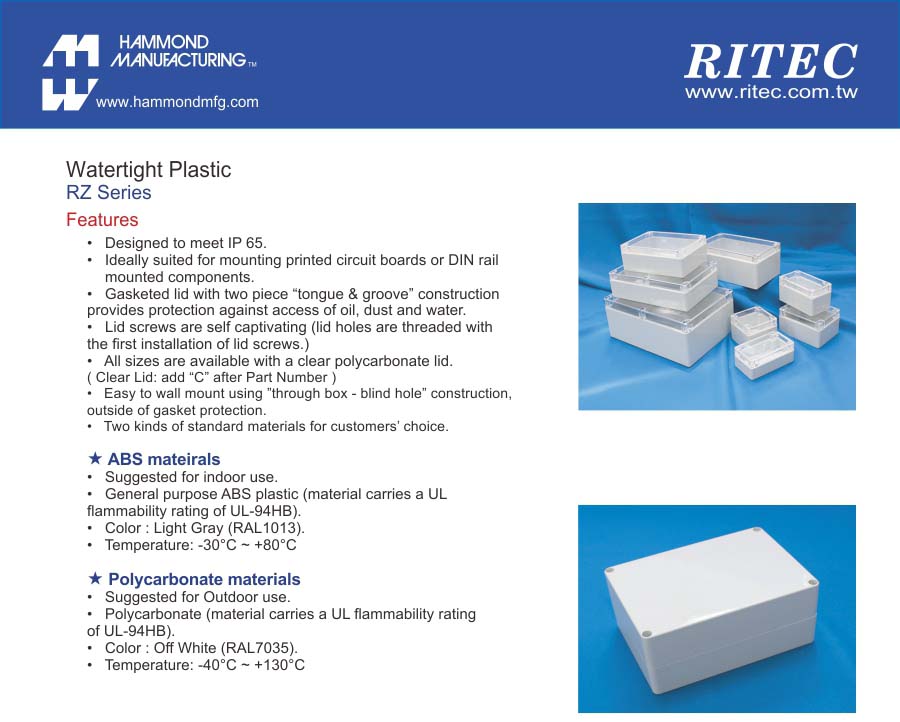

RZ
Series
Sealed Enclosures
|
SIZE
(
L x W x H )
|
Polycarbonate
|
ABS
|
|
82 x
80 x 55 mm.
|
RZ0256
|
RZ0256C
|
RZ0366
|
RZ0366C
|
|
115 x 65
x 40 mm.
|
RZ0203
|
RZ0203C
|
RZ0304
|
RZ0304C
|
|
115 x 65
x 55
mm.
|
RZ0205
|
RZ0205C
|
RZ0308
|
RZ0308C
|
|
115 x
90
x
55
mm.
|
RZ0212
|
RZ0212C
|
RZ0311
|
RZ0311C
|
|
171 x 121 x 55 mm.
|
RZ0214
|
RZ0214C
|
RZ0313
|
RZ0313C
|
|
171 x 121
x 80
mm.
|
RZ0223
|
RZ0223C
|
RZ0340
|
RZ0340C
|
|
200 x 120
x 75 mm.
|
RZ0269
|
RZ0269C
|
RZ0373
|
RZ0373C
|
|
222 x 146
x 55 mm.
|
RZ0218
|
RZ0218C
|
RZ0317
|
RZ0317C
|
|
222 x
146
x 75
mm.
|
RZ0232
|
RZ0232C
|
RZ0353
|
RZ0353C
|
|
240 x 160
x 90
mm.
|
RZ2018
|
RZ2018C
|
RZ3008
|
RZ3008C
|
|
**
Option: C – All sizes are
available for PC clear Top cover
(UV stabilized) .
|
Customization
Service:
• Machining: Drilling, Milling, Punching for
custom cut-out opening.
• Finish: Silkscreen Printing, PAD Printing,
Hot Stamp Printing & Painting.
• Insert Modification: Top cover recessed area
could modify as customer's opening
for quantity production.
(MOQ requested)
• Custom
material and Custom Color are available up on request. (MOQ
requested)
• Custom OEM and ODM enclosure projects are
available up on request. (MOQ requested)
Material
|
Rate
|
UL rate
|
Temperature |
Color |
UV |
Gasket |
Polycarbonate
|
IP65
|
UL-94V2
|
–40 ~ +125℃
|
Off-White
|
○
|
EPDM
|
|
ABS
|
IP65
|
UL-94HB
|
–30 ~ +75℃
|
Light Gray
|
—
|
EPDM
|
|
