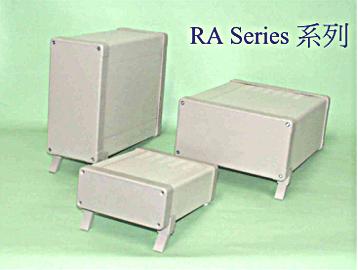

RA Series Aluminum Housings
. Front and Rear bezels with aluminum body as six parts assemblies construction.
Removable front bezel, rear bezel, top plate, bottom plate, and both of
left and right frames, offer a flexible solution for various mounting
installations.
|
.
Bezel
by UL
flame retardant material molded.
ABS
Flame
Retardant (UL-94V0)
.
Temperature Rate -
ABS
: -40℃
~ +75℃
.
Full unit supplied in same color as light gray color as standard color.
|
|
|
.
Bezels top side designed with a interchangeable insert for quantity production
applications. This rectangle area supplied as a recessed smooth area for
labeling as standard product, could be modified to meet any custom
designing cutout opening to fit custom label, membrane
switches or silkscreen printing custom logos and graphics directly.
.
Two different type offered various electronic devices requirements.
a,
Solid type - easy to be machined like drill, mill, punch to make
opening for connectors, switches, etc.
b,
Vent type - supplied vantages top and bottom plate by follow the UL rules.
.
Each type with stand feet option accessories. The stand feet could be
horizontal or vertical.
.
Custom length and custom color available upon request.
|
|
SIZE
(
W x H x
D
)
|
ABS
UL-94V0
|
|
103
x 60 x 190mm.
|
RA10190
|
|
143
x 60 x 190mm.
|
RA14190
|
|
178
x 100 x 190mm.
|
RA18190
|
|
200
x 100 x 250mm.
|
RA20250
|
|
**
Option: V – Vent type.
|
FT
– All sizes are available for Stand Feet .
|
Secondary Operate service:
•Machining: Drilling, Milling, Punching for
custom cut-out opening.
•Printing:
Silkscreen printing, Painting.
•Modification:
front and rear bezels have interchangeable insert could be modified by custom cut-out opening
for quantity production.
•Custom
length and custom color are available up on request.
Custom OEM and ODM enclosure projects are available up on request.
|
