RH series
Sealed Hand-Held enclosures

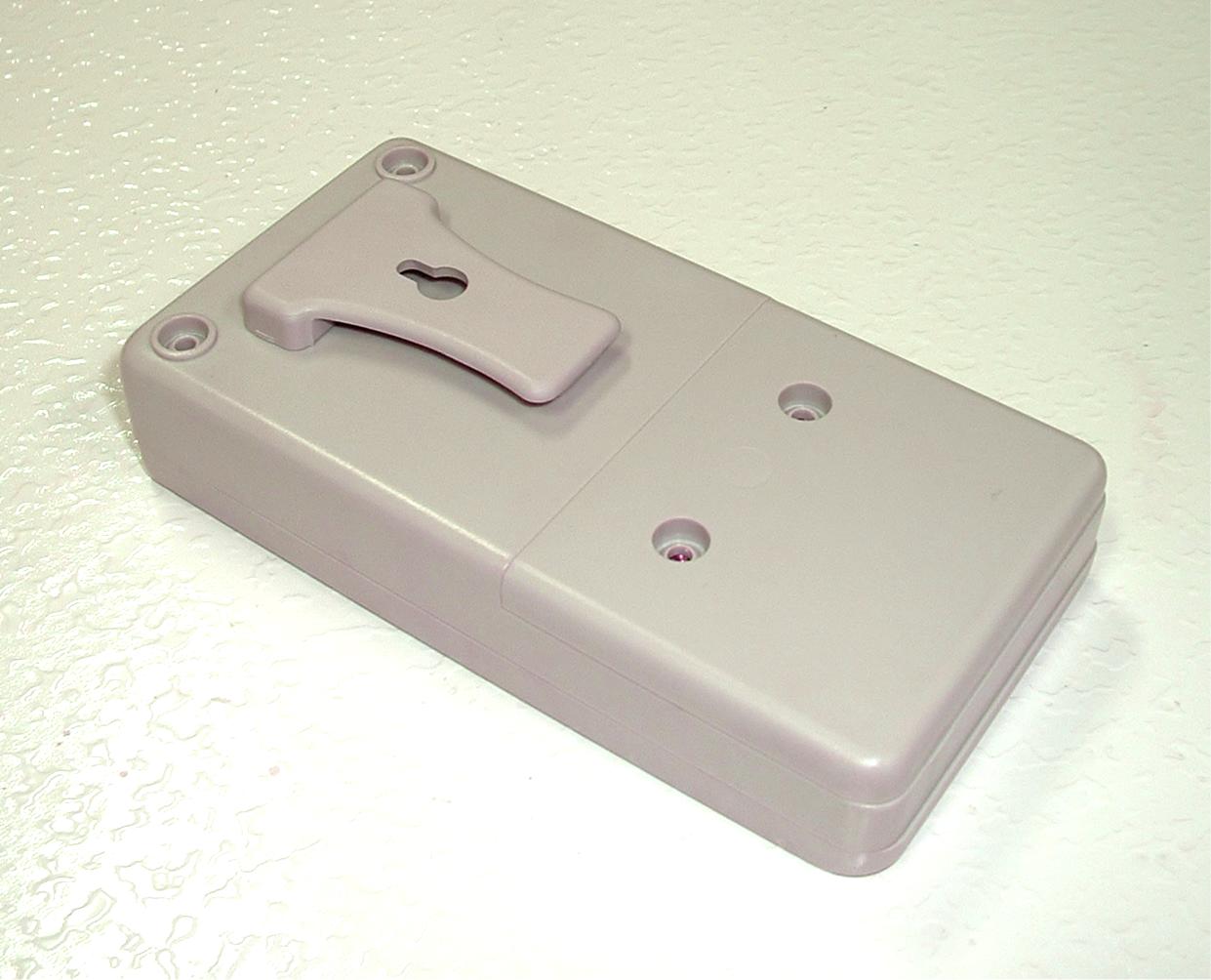

Belt Clip & Battery Cover |
|
. Parts Construction: assemblies as top cover, bottom cover with
battery cover.
|
.
UL
flame retardant material molded. ABS
(UL-94V0)
.
.
Temperature Rate -
ABS
: - 40℃ ~ +75℃
.
Full unit supplied in same color as light gray color as standard color.
|
|
.
Top cover designed with a interchangeable insert, could
be modified to molded custom cut-out opening for quantity production. The
standard type
designed a smooth recessed for custom label, membrane
switches or silkscreen printing customer's logos and graphics directly.
.
Two different types offered various electronic devices requirements.
a,
Sealed Type - meet IP65 hose and dust proof for outdoor using.
b,
Standard Type - for general proposal devices .
|
|
SIZE
(
L x W x H )
|
ABS
UL-94V0
|
|
130 x 68 x 25 mm.
|
RH3005 RH3015
|
|
160
x 85 x 30
mm.
|
RH3045
RH3055
|
|
**
Option: L – with Belt Clip.
|
Secondary Operate service:
•Machining: Drilling, Milling, Punching for
custom cut-out opening.
•Printing:
Silkscreen printing, Painting.
•Modification: Top cover had interchangeable insert could be modified by custom cut-out opening
for quantity production.
•Custom
material and custom color are available up on request.
Custom OEM and ODM enclosure projects are available up on request.
|
