1550
Series
Diecast Aluminum Enclosures
¡@
|
 |
 |
 |
 |
|
Unpainted
|
Black Powder Coating
|

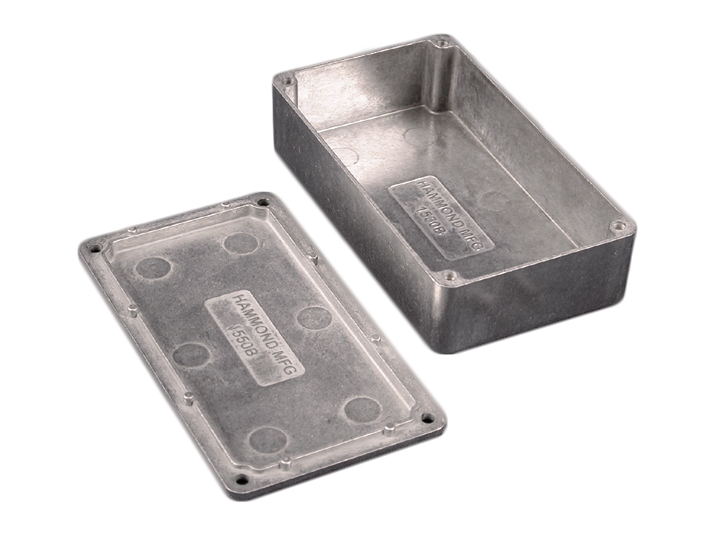

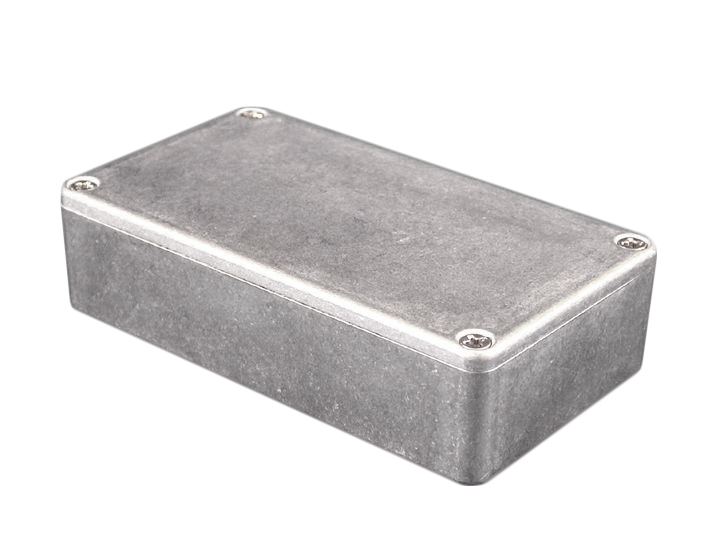

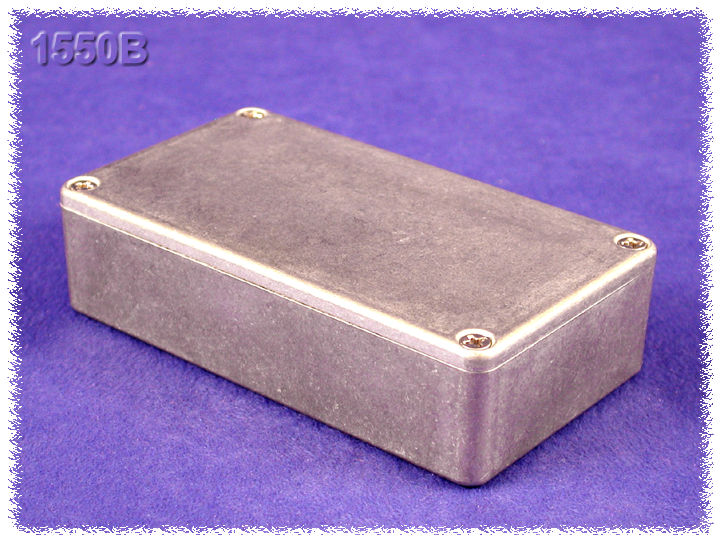

Key Features:
- Rugged, diecast aluminum
alloy (tough yet easy to machine), electronic instrument enclosure.
- Lap joint construction
protection against access of dust and splashing water. Also provides for

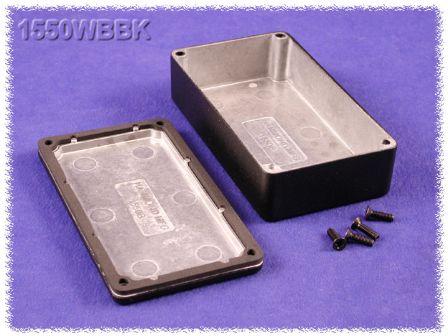

improved EMI/RFI shielding. Link here to our gasketed, watertight IP 66
rated version (1550W
series) - or see optional gasket kits (below)
- Unpainted version is vibra
finished for a smooth surface with no sharp edges.

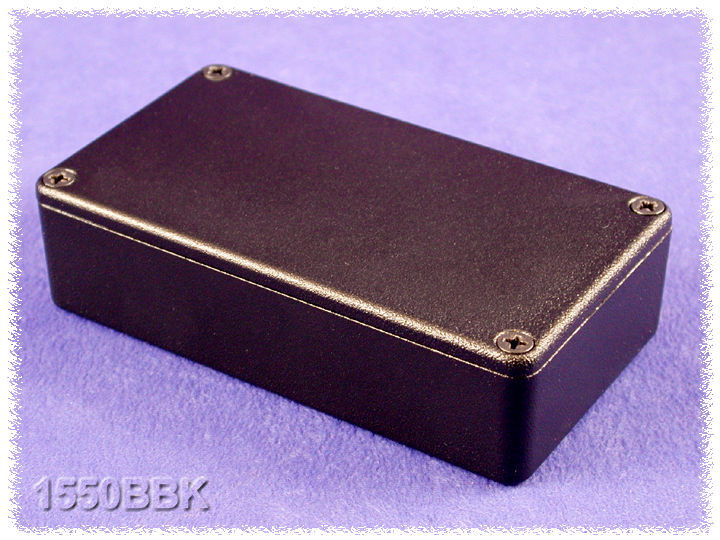

- Painted version is painted
with tough - satin black polyester - powder paint for a lasting finish,
even after machining. Black screws are included to enhance the assembled
appearance.

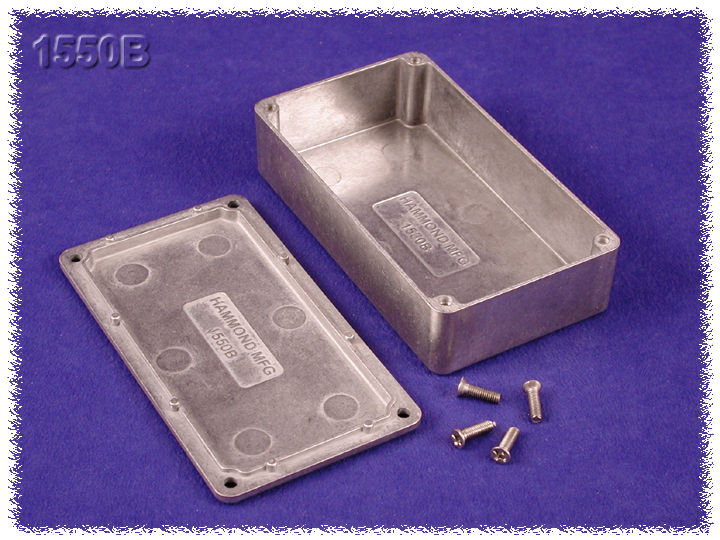

- Four M3.5 x 0.6 x 12 mm
long stainless steel, Philips head, machine screws secure lid - into
factory tapped holes.
- Standard Version designed to meet IP54
(see gasket kits below for upgrades to IP66 & IP67)
- No internal ribs for easy
installation of connectors without interference or additional milling.
- Low side wall draft angle
(2 degrees or less) for easy P.C. board mounting.
¡@
|
Part Number |
Color |
Reader
File
|
AutoCAD
.dwg File
(zipped) |
3D
Solid Model
.igs & .stp
files (zipped)
|
Units |
Length |
Width |
Enclosure
Depth
(Less Lid) |
1550Q
1550QBK |
Unpainted
Black |
567K
|
570K
|
1.5M
|
Inches
|
2.36
|
2.17
|
1.02
|
|
mm |
60
|
55
|
26
|
1550P
1550PBK |
Unpainted
Black |
562K
|
613K
|
1.4M
|
Inches |
3.15 |
2.17 |
0.83 |
|
mm |
80 |
55 |
21 |
1550A
1550ABK |
Unpainted
Black |
500K
|
500K
|
1.4M
|
Inches |
3.5
|
1.38
|
1.02
|
|
mm |
89
|
35
|
26
|
1550B
1550BBK |
Unpainted
Black |
488K
|
488K
|
1.5M
|
Inches |
4.51
|
2.52
|
1.02
|
|
mm |
115
|
64
|
26
|
1550D
1550DBK |
Unpainted
Black |
508K
|
508K
|
1.4M
|
Inches |
4.51 |
2.52 |
2.01 |
|
mm |
115 |
64 |
51 |
1550C
1550CBK |
Unpainted
Black |
493K
|
493K
|
1.5M
|
Inches
|
4.53
|
3.54
|
2.01
|
|
mm |
115 |
90 |
51 |
1550M
1550MBK |
Unpainted
Black |
246K
|
499K
|
1.5M
|
Inches |
4.74
|
3.95
|
1.23
|
|
mm |
120
|
100
|
31
|
1550K
1550KBK |
Unpainted
Black |
216K
|
426K
|
1.5M
|
Inches
|
5.51
|
4.02
|
2.85
|
|
mm |
140
|
102
|
73
|
1550L
1550LBK |
Unpainted
Black |
242K
|
431K
|
1.5M
|
Inches |
6.51
|
5.02
|
2.85
|
|
mm |
165
|
127
|
73
|
1550E
1550EBK |
Unpainted
Black |
856K
|
520K
|
1.5M
|
Inches |
6.73
|
4.76
|
2.01
|
|
mm |
171
|
121
|
51
|
1550F
1550FBK |
Unpainted
Black |
538K
|
429K
|
1.5M
|
Inches |
6.73
|
4.76
|
3.98
|
|
mm |
171
|
121
|
101
|
1550G
1550GBK |
Unpainted
Black |
535K
|
532K
|
1.6M
|
Inches |
8.74
|
5.75
|
2.01
|
|
mm |
222
|
146
|
51
|
1550H
1550HBK |
Unpainted
Black |
527K
|
461K
|
1.5M
|
Inches |
8.74
|
5.75
|
3.98
|
|
mm |
222
|
146
|
101
|
1550N
1550NBK |
Unpainted
Black |
246K
|
542K
|
1.7M
|
Inches |
9.85
|
9.85
|
3.82
|
|
mm |
250
|
250
|
97
|
1550J
1550JBK |
Unpainted
Black |
223K
|
506K
|
1.5M
|
Inches |
10.83
|
6.89
|
2.46
|
|
mm |
275
|
175
|
63
|
Link here to photo tables
of each part number
NOTES:
- Add 0.16" (4 mm) to enclosure depth for lid
- Available in natural vibra finish OR in light textured, black powder
painted.
Gasket Kits (IP 66 Rated):
click to enlarge
|
-

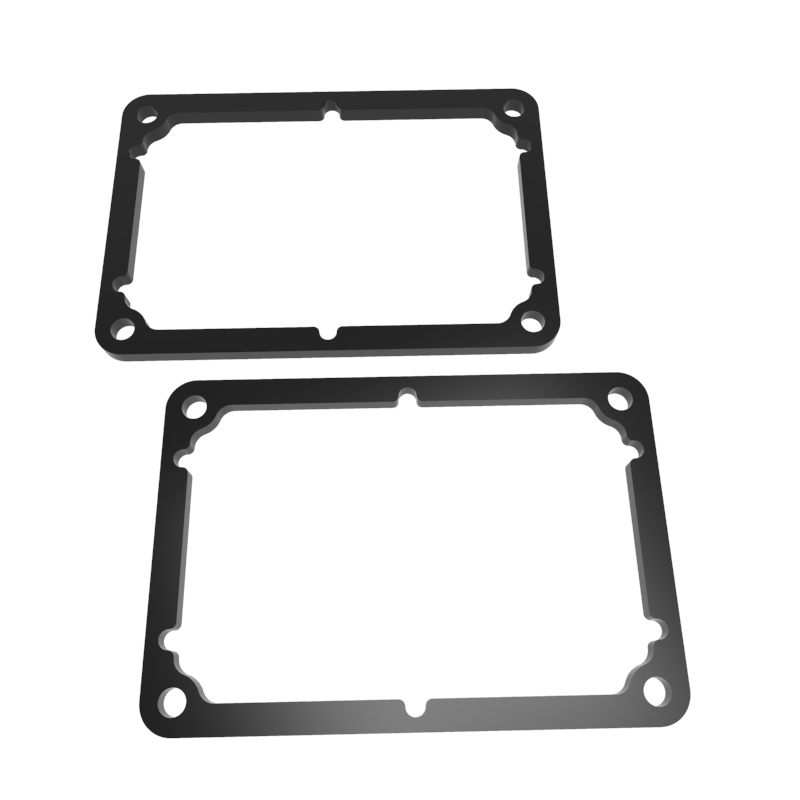

Each kit
includes two pre-formed economical EVA foam gaskets.
-
Gaskets
include adhesive backing for easy installation.
-
-

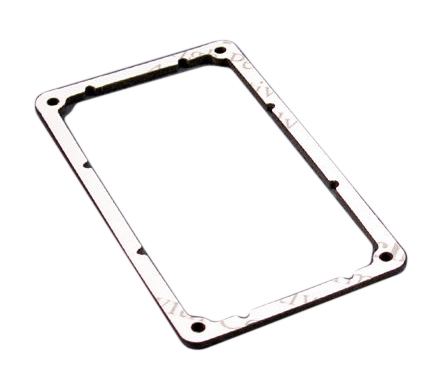

Gasket is
applied to the lid (see photo example).
- Designed to meet
IP 66 (with properly installed gasket and lid screws torqued at
55 cN.m).
|
¡@
|
Enclosure Part Number
Starts With:
|
Use IP-66 Gasket Kit
Part Number
(Includes two gaskets)
|
| 1550A |
1550AEGASKET |
| 1550B |
1550BEGASKET |
| 1550C |
1550CEGASKET |
| 1550D |
1550BEGASKET |
| 1550E |
1550EEGASKET |
| 1550F |
1550EEGASKET |
| 1550G |
1550GEGASKET |
| 1550H |
1550GEGASKET |
| 1550J |
1550JEGASKET |
| 1550K |
1550KEGASKET |
| 1550L |
1550LEGASKET |
| 1550M |
1550MEGASKET |
| 1550N |
1550NEGASKET |
| 1550P |
1550PEGASKET |
| 1550Q |
1550QEGASKET |
¡@
Gasket Kits (IP 67 Rated):
click to enlarge
|
-
Each kit
includes two pre-formed silicon gaskets.
-
Gaskets
include adhesive backing for easy installation.
-
Allows
enclosure to be machined and/or painted first and
gasketed later.
-
Gasket is
applied to the lid (see photo example).
- Tested to meet IP
67 (with properly installed gasket and lid screws torqued at 55
cN.m).
|
¡@
|
Enclosure Part Number
Starts With:
|
Use IP-68 Gasket Kit
Part Number
(Includes two gaskets)
|
| 1550A |
1550ASGASKET |
| 1550B |
1550BSGASKET |
| 1550C |
1550CSGASKET |
| 1550D |
1550BSGASKET |
| 1550E |
1550ESGASKET |
| 1550F |
1550ESGASKET |
| 1550G |
1550GSGASKET |
| 1550H |
1550GSGASKET |
| 1550J |
1550JSGASKET |
| 1550K |
1550KSGASKET |
| 1550L |
1550LSGASKET |
| 1550M |
1550MSGASKET |
| 1550N |
1550NSGASKET |
| 1550P |
1550PSGASKET |
| 1550Q |
1550QSGASKET |
¡@
Customization
Service:
• Machining: CNC Drilling, CNC Milling, Punching for
custom cut-out opening.
• Finish: Silkscreen Printing, PAD Printing,
Hot Stamp Printing, Painting & Powder Coating.
• Insert Modification: Top cover
could modify as customer's opening
for quantity production. (MOQ requested)
• Custom Color are available up on request. (MOQ
requested)
• Custom OEM and ODM enclosure projects are
available up on request. (MOQ requested)
|
