1590 Ribbed
Series
|
|

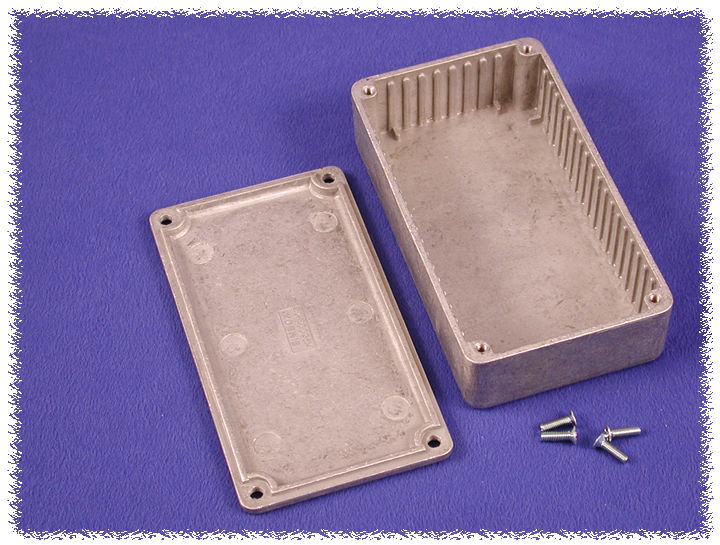

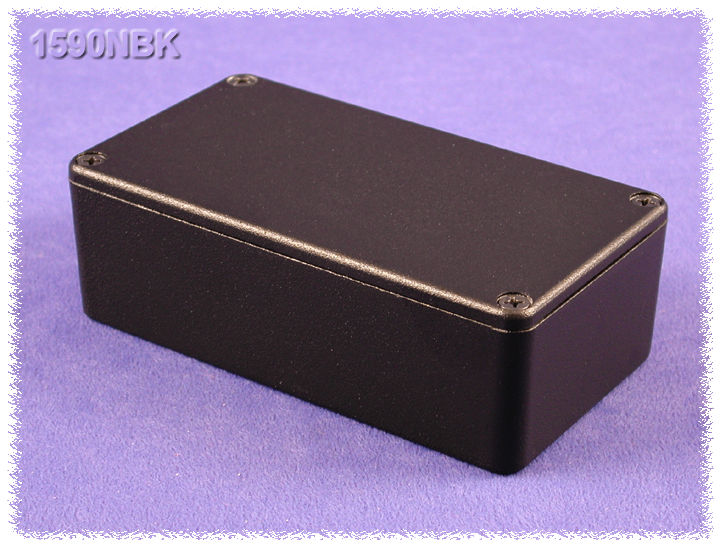

Diecast Aluminum Enclosures
(1590 Series)
with P.C. Board Mounting Ribs
|
click to enlarge
|
|
click to enlarge
|
Key Features:
- Rugged, diecast aluminum
alloy (tough yet easy to machine), electronic instrument enclosure.
- Integral card guides cast
into all four (4) sides - accepts 1.5 mm (0.062�) thick P.C. cards.
- Lap joint construction
provides protection against access of dust and splashing water also
provides for improved EMI/RFI shielding.
- Unpainted version is vibra
finished for a smooth surface with no sharp edges.
- Painted version is painted
with tough - satin black polyester powder paint for a lasting finish,
even after machining. Black screws are included to enhance assembled
appearance.
- Four machine screws secure
lid - into tapped holes.
- Designed to meet IP54.
|
Part Number |
Color |
Reader
File |
AutoCAD
.dwg Files
(zipped)
|
3D
Solid Model
.igs & .stp
files (zipped)
|
Inside
Walls |
Units |
Length |
Width |
Enclosure
Depth
(Less Lid) |
Apx.
Draft
(Degrees)
|
1590MM
1590MMBK |
Unpainted
Black |
225K
|
136K
|
300K
|
Ribbed |
Inches |
1.97
|
1.97
|
1.06
|
2
|
|
mm |
50
|
50
|
27
|
1590L
1590LBK |
Unpainted
Black |
207K
|
142K
|
245K
|
Ribbed |
Inches |
3.96 |
1.98 |
0.83 |
2
|
|
mm |
101 |
50 |
21 |
1590M
1590MBK |
Unpainted
Black |
259K
|
264K
|
458K
|
Ribbed |
Inches |
4.48 |
2.49 |
1.06 |
2
|
|
mm |
112 |
62 |
27 |
1590N
1590NBK |
Unpainted
Black |
235K
|
175K
|
335K
|
Ribbed |
Inches |
4.75 |
2.61 |
1.42 |
2
|
|
mm |
120 |
66 |
36 |
1590PP
1590PPBK |
Unpainted
Black |
210K
|
142K
|
307K
|
Ribbed |
Inches |
4.76
|
3.74
|
2.24
|
2
|
|
mm |
121
|
95
|
57
|
1590P
1590PBK |
Unpainted
Black |
295K
|
221K
|
481K
|
Ribbed |
Inches |
6.01 |
3.24 |
1.81 |
2
|
|
mm |
152 |
82 |
46 |
1590R
1590RBK |
Unpainted
Black |
245K
|
179K
|
449K
|
Ribbed |
Inches |
7.55 |
4.38 |
2.24 |
2
|
|
mm |
192 |
112 |
57 |
NOTES:
-
Add 0.16" (4 mm) to enclosure depth for lid
-
Available in natural vibra finish or painted in light textured,
black powder paint.
Diecast Aluminum Enclosures
(1590 "FL" Series)
with P.C. Board Mounting Ribs w/ Flanged Lid
|
Part Number
|
Color
|
Reader
File
|
AutoCAD
.dwg Files
(zipped)
|
3D
Solid Model
.igs & .stp
files (zipped)
|
Inside
Walls
|
Dimensions
|
Apx.
Draft
(Degrees)
|
|
Units
|
Length
|
Width
|
Enclosure
Depth
(Less Lid)
|
1590NFL
1590NFLBK |
Unpainted
Black |
234K
|
172K
|
359K
|
Ribbed |
Inches |
4.75
|
2.61
|
1.42
|
2
|
| mm |
120
|
66
|
36
|
1590PFL
1590PFLBK |
Unpainted
Black |
320K
|
225K
|
511K
|
Ribbed |
Inches |
6.01
|
3.24
|
1.81
|
2
|
| mm |
152
|
82
|
46
|
NOTES:
-
Add 0.16" (4 mm) to enclosure depth for lid
-
Available in natural vibra finish or painted in light textured, black
powder paint.
Diecast Aluminum Enclosures
(1590 "F" Series)
with P.C. Board Mounting Ribs w/ Bottom Flange
click to enlarge
|
Part Number
|
Color
|
Reader
File
|
AutoCAD
.dwg Files
(zipped)
|
3D
Solid Model
.igs & .stp
files (zipped)
|
Inside
Walls
|
Dimensions
|
Apx.
Draft
(Degrees)
|
|
Units
|
Length
|
Width
|
Enclosure
Depth
(Less Lid)
|
| 1590LF |
Unpainted |
203K
|
133K
|
263K
|
Ribbed |
Inches |
3.96 |
1.98 |
0.83 |
2
|
| mm |
101 |
50 |
21 |
| 1590MF |
Unpainted |
245K
|
173K
|
476K
|
Ribbed |
Inches |
4.48 |
2.49 |
1.06 |
2
|
| mm |
112 |
62 |
27 |
1590NF
1590NFBK |
Unpainted
Black |
233K
|
154K
|
353K
|
Ribbed |
Inches |
4.75
|
2.61
|
1.42
|
2
|
| mm |
120
|
66
|
36
|
| 1590PF
|
Unpainted |
283K
|
172K
|
499K
|
Ribbed |
Inches |
6.01
|
3.24
|
1.81
|
2
|
| mm |
152
|
82
|
46
|
| 1590RF
|
Unpainted |
242K
|
179K
|
470K
|
Ribbed |
Inches |
7.55 |
4.38 |
2.24 |
2
|
| mm |
192 |
112 |
57 |
NOTES:
-
Add 0.16" (4 mm) to enclosure depth for lid
-
Available in natural vibra finish or painted in light textured, black
powder paint.
 catalog
pages on this series (165K)
9C-1590PC.pdf
Exactly what you are looking for???
Link to our stocking distributors - most have "on-line" pricing, stock check and
ordering!!!
|
PART NO.
|
UNITS |
SIZE( L x W x H )
|
Depth of Lid |
|
1590MM |
mm |
50 x 50 x 31 |
4 |
|
1590L |
mm |
101 x 50 x 25 |
4 |
|
1590M |
mm |
112 x 62 x 31 |
4 |
|
1590N |
mm |
120 x 66 x 40 |
4 |
|
1590PP |
mm |
121 x 95 x 61 |
4 |
|
1590P |
mm |
152 x 82 x 50 |
4 |
|
1590R |
mm |
192 x 112 x 61 |
4 |
|
PART NO.
(Paint)
|
UNITS |
SIZE( L x W x H )
|
Depth of Lid |
|
1590MMBK |
mm |
50 x 50 x 31 |
4 |
|
1590LBK |
mm |
101 x 50 x 25 |
4 |
|
1590MBK |
mm |
112 x 62 x 31 |
4 |
|
1590NBK |
mm |
120 x 66 x 40 |
4 |
|
1590PPBK |
mm |
121 x 95 x 61 |
4 |
|
1590PBK |
mm |
152 x 82 x 50 |
4 |
|
1590RBK |
mm |
192 x 112 x 61 |
4 |
Customization
Service:
• Machining: Drilling, Milling, Punching for
custom cut-out opening.
• Finish: Silkscreen Printing, PAD Printing,
Hot Stamp Printing & Painting.
• Insert Modification: Top cover recessed area
could modify as customer's opening
for quantity production.
(MOQ requested)
• Custom
material and Custom Color are available up on request. (MOQ
requested)
• Custom OEM and ODM enclosure projects are
available up on request. (MOQ requested)
|
