• Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
• Lap joint construction with a factory poured silicone rubber gasket around the perimeter of the lid provides protection against access of dust and water. NOTE: we have made a "running change" improvement to this series - after August, 2010 production. Units made after August 2010 will have a separate - self adhesive silicone gasket included.
• Silicone rubber gasket remains flexible from -62 to +232慢 (-80 to +450 ).
• Unpainted version is vibra finished for a smooth surface with no sharp edges.

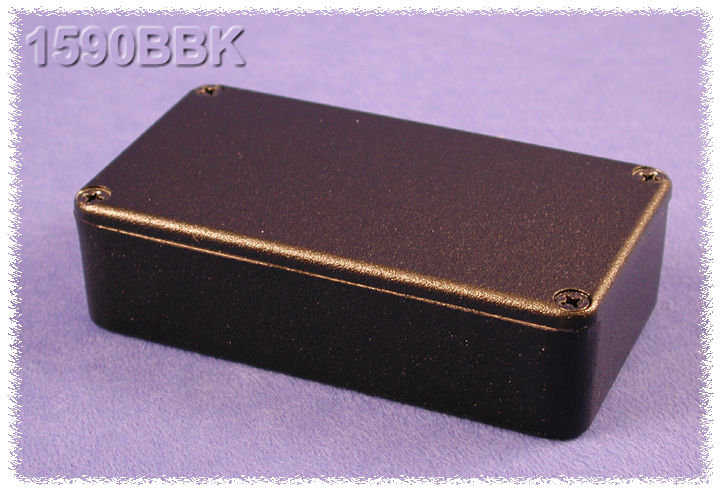

• Painted version is painted with tough - satin black polyester powder paint for a lasting finish, even after machining. Black stainless steel, screws are included to enhance assembled appearance.

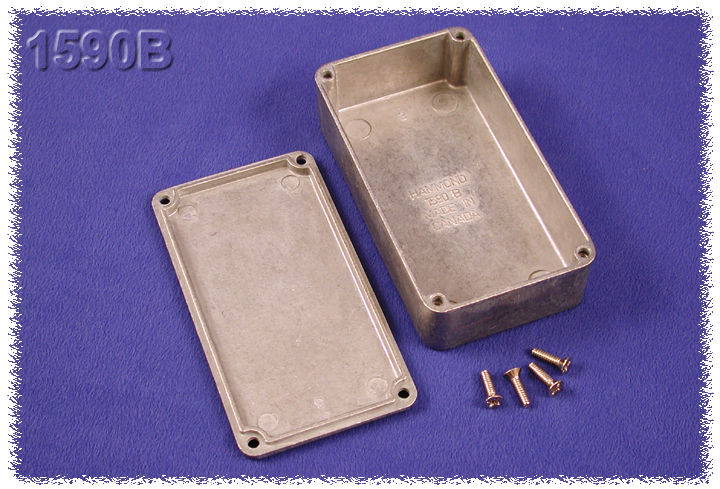

• Quantity four (4) 6-32 x 1/2?stainless steel, machine screws secure lid (or six (6) in 1590WBX, 1590WBX2, 1590WD, 1590WDD, 1590WDE, 1590WE, 1590WEE & 1590WR1 or eight (8) in the 1590WF) - into factory tapped holes. See drawings and/or photos for details.
• Screws use neoprene "O" rings (included).
• Replacement screws & "O" rings for natural finish series - stainless steel, machine type, 6-32 x 1/2?- 1590WMS100 - Package of 100
• Replacement screws & "O" rings for black series, black oxide, stainless steel, 6-32 x 1/2?- 1590WMS100BK - Package of 100
• Designed to meet IP65.
• Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.

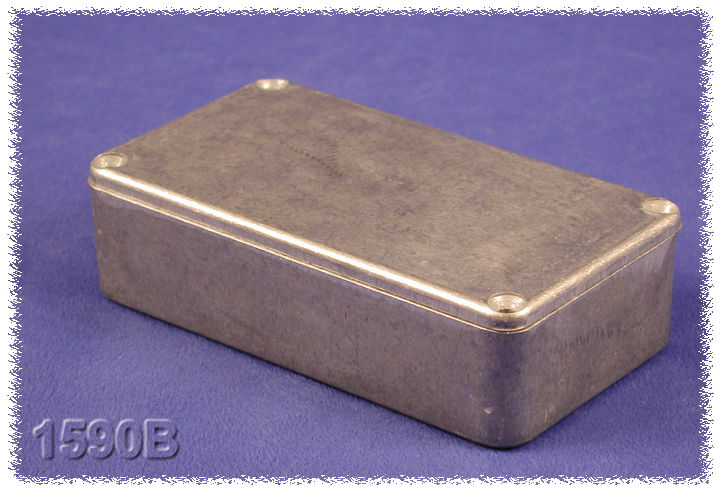

• Link here to photo tables of each part number - note: regular (non-watertight) version shown for sizing.

　



　

PART NO. (Non Watertight)	PART NO. (Watertight)	UNITS	SIZE( L x W x H )	Depth of Lid
1590LLB	1590WLLB	mm	50 x 50 x 25	4
1590LB	1590WLB	mm	51 x 51 31	4
1590H	1590WH	mm	52.5 x 38 x 31	4
1590Y	1590WY	mm	92 x 92 x 42	4
1590A	1590WA	mm	93 x 39 x 31	4
1590G	1590WG	mm	100 x 50 x 25	4
1590B	1590WB	mm	112 x 60 x 31	4
1590BS	1590WBS	mm	112 x 60 x 42	4
1590S	1590WS	mm	111 x 82 x 44	4
1590N1	1590WN1	mm	121 x 66 x 39	4
1590T	1590WT	mm	120 x 80 x 59	4
1590BB	1590WBB	mm	119 x 94 x 34	4
1590BBS	1590WBBS	mm	119 x 94 x 42	4
1590C	1590WC	mm	120 x 94 x 57	4
1590CE	1590WCE	mm	120 x 100 x 64	4
1590Q	1590WQ	mm	120 x 120 x 32	4
1590U	1590WU	mm	120 x 120 x 59	4
1590V	1590WV	mm	120 x 120 x 94	4
1590KK	1590WKK	mm	125 x 125 x 57	4
1590K	1590WK	mm	125 x 125 x 79	4
1590J	1590WJ	mm	145 x 95 x 49	4
1590XX	1590WXX	mm	145 x 121 x 39	4
1590X	1590WX	mm	145 x 121 x 56	4
1590P1	1590WP1	mm	153 x 82 x 50	4
1590DD	1590WDD	mm	188 x 120 x 37	4
1590D	1590WD	mm	188 x 120 x 56	4
1590E	1590WE	mm	188 x 120 x 82	4
1590F	1590WF	mm	188 x 188 x 67	4
1590R1	1590WR1	mm	192 x 111 x 61	4
1590DE	1590WDE	mm	200 x 120 x 64	4
1590EE	1590WEE	mm	200 x 120 x 84	4

Customization Service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Finish: Silkscreen Printing, PAD Printing, Hot Stamp Printing & Painting.

• Insert Modification: Top cover recessed area could modify as customer's opening for quantity production.

 (MOQ requested)

• Custom material and Custom Color are available up on request.  (MOQ requested)

• Custom OEM and ODM enclosure projects are available up on request.  (MOQ requested)

　

---
