1590FL Series (Flanged Lid)

Diecast Aluminum Enclosures
(1590 "FL" Series)
with Flanged Lid

click to enlarge

click to enlarge

click to enlarge

Key Features:

Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
Lap joint construction provides protection against access of dust and splashing water.
Flanged lid allows for easy mounting to walls or shelves & provides high security (as lid screws are hidden against wall or shelf). If you require easy access to enclosure see our flanged foot version.
These enclosures share the same body and features as our regular type 1590 enclosure except the lid is extended and four countersunk holes are cast into the flanges.
The flanged lid allows for added security as the lid screws are hidden against the wall or shelf.
Unpainted version is vibra finished for a smooth surface with no sharp edges.
Painted version is painted with tough - satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance assembled appearance.
Quantity four (4) 6-32 x 1/2� machine screws secure lid (or six (6) in 1590DFL, 1590DDFL, 1590EFL & 1590R1FL or eight (8) in the 1590FFL) - into factory tapped holes. See drawings and/or photos for details.
Designed to meet IP54 (see gasket kit accessory below to meet IP66).
Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Replacement screws for natural finish series, machine type, nickel plated, 6-32 x 1/2� - 1590MS100 - Package of 100
Replacement screws for black painted series, 6-32 x 1/2� - 1590MS50BK - Package of 50
Link here to photo tables of each part number

Part Number	Color	Reader File	AutoCAD .dwg Files (zipped)	3D Solid Model .igs & .stp files (zipped)	Units	Length	Width	Enclosure Depth (Less Lid)
1590LLBFL 1590LLBFLBK	Unpainted Black	246K	192K	315K	Inches	1.97	1.97	0.83
					mm	50	50	21
1590LBFL 1590LBFLBK	Unpainted Black	239K	164K	335K	Inches	1.99	1.99	1.06
					mm	51	51	27
1590YFL 1590YFLBK	Unpainted Black	229K	171K	309K	Inches	3.62	3.62	1.50
					mm	92	92	38
1590AFL 1590AFLBK	Unpainted Black	232K	157K	280K	Inches	3.64	1.52	1.06
					mm	93	39	27
1590GFL 1590GFLBK	Unpainted Black	241K	242K	307K	Inches	3.94	1.97	0.83
					mm	100	50	21
1590SFL 1590SFLBK	Unpainted Black	237K	244K	299K	Inches	4.35	3.21	1.57
					mm	111	82	40
1590BFL 1590BFLBK	Unpainted Black	230K	207K	294K	Inches	4.39	2.34	1.06
					mm	112	60	27
1590BSFL 1590BSFLBK	Unpainted Black	240K	164K	324K	Inches	4.39	2.37	1.50
					mm	112	60	38
1590BBFL 1590BBFLBK	Unpainted Black	235K	165K	326K	Inches	4.67	3.68	1.18
					mm	119	94	30
1590BBSFL 1590BBSFLBK	Unpainted Black	235K	199K	324K	Inches	4.70	3.70	1.50
					mm	120	94	38
1590QFL 1590QFLBK	Unpainted Black	210K	181K	275K	Inches	4.70	4.70	1.1
					mm	120	120	28
1590UFL 1590UFLBK	Unpainted Black	218K	164K	280K	Inches	4.70	4.70	2.17
					mm	120	120	55
1590VFL 1590VFLBK	Unpainted Black	214K	159K	288K	Inches	4.70	4.70	3.54
					mm	120	120	90
1590CFL 1590CFLBK	Unpainted Black	234K	165K	283K	Inches	4.72	3.70	2.07
					mm	120	94	53
1590TFL 1590TFLBK	Unpainted Black	221K	161K	290K	Inches	4.74	3.13	2.17
					mm	121	80	55
1590N1FL 1590N1FLBK	Unpainted Black	205K	132K	207K	Inches	4.77	2.6	1.39
					mm	121.1	66	35.3
1590KKFL 1590KKFLBK	Unpainted Black	220K	176K	319K	Inches	4.92	4.92	2.10
					mm	125	125	53
1590XXFL 1590XXFLBK	Unpainted Black	353K	419K	1.5M	Inches	5.72	4.77	1.39
					mm	145	121	35
1590XFL 1590XFLBK	Unpainted Black	349K	454K	1.5M	Inches	5.72	4.77	2.06
					mm	145	121	52
1590P1FL 1590P1FLBK	Unpainted Black	203K	151K	273K	Inches	6.01	3.24	1.81
					mm	153	82	46
1590DDFL 1590DDFLBK	Unpainted Black	227K	321K	649K	Inches	7.40	4.70	1.30
					mm	188	119.5	33
1590DFL 1590DFLBK	Unpainted Black	252K	258K	581K	Inches	7.38	4.70	2.05
					mm	188	120	52
1590EFL 1590EFLBK	Unpainted Black	251K	219K	661K	Inches	7.38	4.70	3.07
					mm	188	120	78
1590FFL 1590FFLBK	Unpainted Black	270K	276K	585K	Inches	7.38	7.38	2.48
					mm	188	188	63
1590R1FL 1590R1FLBK	Unpainted Black	229K	215K	337K	Inches	7.55	4.38	2.24
					mm	192	111	57

Link here to photo tables of each part number

NOTES:

Dimensions are for enclosure (length does not include flanges)
Add 0.16" (4 mm) to enclosure depth for lid
Available in natural vibra finish OR in light textured, black powder paint.

Color Options & Views:

　

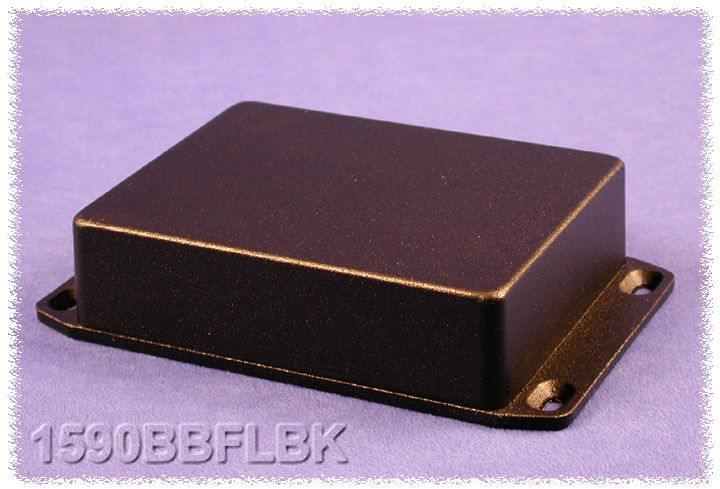

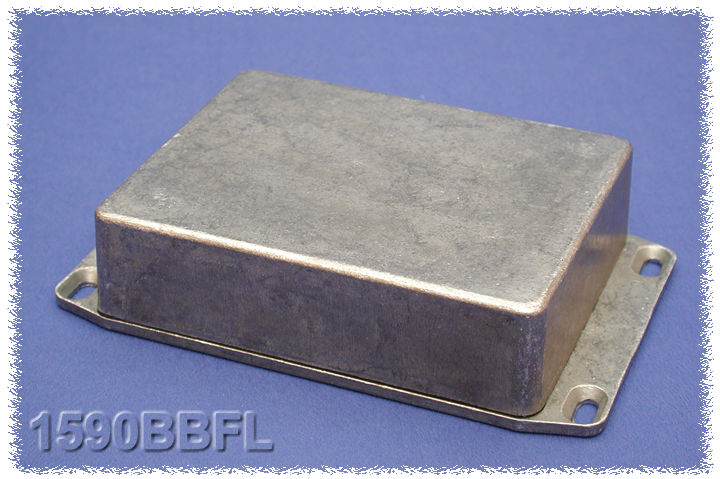

NATURAL FINISH	BLACK SATIN TEXTURE FINISH
Assembled	Assembled
click to enlarge	click to enlarge

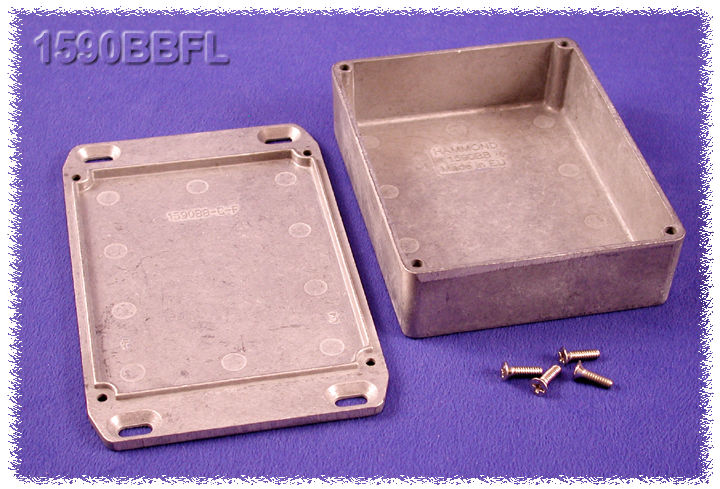

Interior	Interior
click to enlarge	click to enlarge

Accessories

Gasket Kits:

click to enlarge

Each kit includes two pre-formed silicon gaskets.
Gaskets include adhesive backing for easy installation.
Allows enclosure to be machined and/or painted first and gasketed later (or use our 1590 FL watertight version)
Gasket is applied to the lid (see photo example).
Designed to meet IP65 (with properly installed gasket and lid screws torqued at 55 cN.m).

click to enlarge

Enclosure Part Number Starts With:	Use Gasket Kit Part Number (Includes two gaskets)
1590A	1590AGASKET
1590B	1590BGASKET
1590BB	1590BBGASKET
1590C	1590BBGASKET
1590D	1590EGASKET
1590DD	1590EGASKET
1590E	1590EGASKET
1590F	1590FGASKET
1590G	1590GGASKET
1590H	1590HGASKET
1590J	1590JGASKET
1590K	1590KGASKET
1590KK	1590KGASKET
1590LB	1590LBGASKET
1590LLB	1590LBGASKET
1590N	1590NGASKET
1590P	1590PGASKET
1590Q	1590QGASKET
1590R1	1590RGASKET
1590S	1590SGASKET
1590T	1590TGASKET
1590U	1590QGASKET
1590V	1590QGASKET
1590X	1590XGASKET
1590XX	1590XGASKET
1590Y	1590YGASKET

PART NO.	UNITS	SIZE( L x W x H )	Depth of Lid
1590LLBFL	mm	50 x 50 x 25	4
1590LBFL	mm	51 x 51 31	4
1590HFL	mm	52.5 x 38 x 31	4
1590YFL	mm	92 x 92 x 42	4
1590AFL	mm	93 x 39 x 31	4
1590GFL	mm	100 x 50 x 25	4
1590BFL	mm	112 x 60 x 31	4
1590BSFL	mm	112 x 60 x 42	4
1590SFL	mm	111 x 82 x 44	4
1590N1FL	mm	121 x 66 x 39	4
1590TFL	mm	120 x 80 x 59	4
1590BBFL	mm	119 x 94 x 34	4
1590BBSFL	mm	119 x 94 x 42	4
1590CFL	mm	120 x 94 x 57	4
1590QFL	mm	120 x 120 x 32	4
1590UFL	mm	120 x 120 x 59	4
1590VFL	mm	120 x 120 x 94	4
1590KKFL	mm	125 x 125 x 57	4
1590KFL	mm	125 x 125 x 79	4
1590JFL	mm	145 x 95 x 49	4
1590XXFL	mm	145 x 121 x 39	4
1590XFL	mm	145 x 121 x 56	4
1590P1FL	mm	153 x 82 x 50	4
1590DDFL	mm	188 x 120 x 37	4
1590DFL	mm	188 x 120 x 56	4
1590EFL	mm	188 x 120 x 82	4
1590FFL	mm	188 x 188 x 67	4
1590R1FL	mm	192 x 111 x 61	4

Customization Service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Finish: Silkscreen Printing, PAD Printing, Hot Stamp Printing & Painting.

• Insert Modification: Top cover recessed area could modify as customer's opening for quantity production.

(MOQ requested)

• Custom material and Custom Color are available up on request. (MOQ requested)

• Custom OEM and ODM enclosure projects are available up on request. (MOQ requested)
