1550Z -AL Die casting 1590FL -AL Flanged Lid 1590 Ribbed -AL Flanged Lid 1590W Series 1590 Rib -AL Flanged Lid 1590 Stomp-AL Die Casting 1550-AL Die Casting RZ - Sealed Enclosures RZBF - Sealed Enclosures RP-Sealed RPBF-Sealed RS-Sealed RW-Wiring RG-Cable Glands RM-Instrumental RL-Project Box RL-Project Box RH-Hand-Held RH / Hand-Held 1593 Hand Held 1553 Soft Side Hand Held 1553 Soft Side Color 1551 Small Project Box 1596 Hand Held 1455 Hand Held RA-AL Extrude CUSTOMIZATION
| |
1590
Series
(Ribbed)
![Home](logo1.gif) |
|
Diecast Aluminum Enclosures
(1590 Series)
|
|
![](1590B2_B.jpg)
click to enlarge
|
![](1590BInt_B.jpg)
click to enlarge
|
![](1590BBK_B.jpg)
click to enlarge
|
Key Features:
-
Rugged, diecast aluminum
alloy (tough - yet easy to machine), electronic instrument
enclosure.
-
Lap joint construction
provides protection against access of dust and splashing water. Also
provides for improved EMI/RFI shielding.
- Unpainted version is vibra
finished for a smooth surface with no sharp edges.
-
Satin black painted
version is painted with tough polyester powder paint for a lasting
finish, even after machining. Black screws are included to enhance
appearance.
- Three of our popular "stomp
box" sizes are also available - from stock in other various colors - see our
1590 Stomp Box
series.
-
Three of our popular sizes
are also available in
diecast zinc
(heavy weight, high impact, easy to machine & plate).
-
Quantity four (4) 6-32 x
1/2� machine screws secure lid (or six (6) in 1590D, 1590DD, 1590DE,
1590E, 1590EE & 1590R1 or eight (8) in the 1590F) - into factory
tapped holes. See drawings and/or photos for details.
-
Designed to meet IP54 (see
gasket kit accessory below to meet IP66).
- Low side wall draft angle (2
degrees or less) for easy P.C. board mounting.
-
Replacement screws for
natural finish series, machine type, nickel plated, 6-32 x 1/2� -
1590MS100
- Package of 100
-
Replacement screws for
black series, 6-32 x 1/2� -
1590MS50BK - Package of 50
- NOTE:
Three sizes: 1590CE, 1590DE & 1590EE use metric lid screws. Replacement part
number is 1550MS100
- Package of 100.
-
Table In Order By
Length
Part Number |
Color |
![](pdficon.gif)
Reader
File |
AutoCAD
.dwg Files
(zipped)
|
3D
Solid Model
.igs & .stp
files (zipped)
|
Units |
Length |
Width |
Enclosure
Depth
(Less Lid) |
1590LLB
1590LLBBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
232K
|
![ZIP Download](zipbut.gif)
179K
|
![3D ZIP Download](zip3Dbut.gif)
258K
|
Inches |
1.97
|
1.97
|
0.83
|
mm |
50
|
50
|
21
|
1590LB
1590LBBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
226K
|
![ZIP Download](zipbut.gif)
157K
|
![3D ZIP Download](zip3Dbut.gif)
279K
|
Inches |
1.99
|
1.99
|
1.06
|
mm |
51 |
51 |
27 |
1590H
1590HBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
204K
|
![ZIP Download](zipbut.gif)
118K
|
![3D ZIP Download](zip3Dbut.gif)
141K
|
Inches |
2.07 |
1.5 |
1.06 |
mm |
52.5 |
38 |
27 |
1590Y
1590YBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
222K
|
![ZIP Download](zipbut.gif)
163K
|
![3D ZIP Download](zip3Dbut.gif)
277K
|
Inches |
3.62
|
3.62
|
1.50
|
mm |
92
|
92
|
38
|
1590A
1590ABK |
Unpainted
Black |
![PDF Download](pdficon.gif)
227K
|
![ZIP Download](zipbut.gif)
166K
|
![3D ZIP Download](zip3Dbut.gif)
256K
|
Inches |
3.64 |
1.52 |
1.06 |
mm |
93 |
39 |
27 |
1590G
1590GBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
245K
|
![ZIP Download](zipbut.gif)
252K
|
![3D ZIP Download](zip3Dbut.gif)
278K
|
Inches |
3.94
|
1.97
|
0.83
|
mm |
100 |
50 |
21 |
1590S
1590SBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
235K
|
![ZIP Download](zipbut.gif)
207K
|
![3D ZIP Download](zip3Dbut.gif)
300K
|
Inches |
4.35 |
3.21 |
1.57 |
mm |
111 |
82 |
40 |
1590B
1590BBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
232K
|
![ZIP Download](zipbut.gif)
223K
|
![3D ZIP Download](zip3Dbut.gif)
254K
|
Inches |
4.40 |
2.38 |
1.06 |
mm |
112 |
60 |
27 |
1590BS
1590BSBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
236K
|
![ZIP Download](zipbut.gif)
177K
|
![3D ZIP Download](zip3Dbut.gif)
271K
|
Inches |
4.40
|
2.38
|
1.50
|
mm |
112
|
60
|
38
|
1590BB
1590BBBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
229K
|
![ZIP Download](zipbut.gif)
181K
|
![3D ZIP Download](zip3Dbut.gif)
301K
|
Inches |
4.67 |
3.68 |
1.18 |
mm |
119 |
94 |
30 |
1590BBS
1590BBSBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
241K
|
![ZIP Download](zipbut.gif)
213K
|
![3D ZIP Download](zip3Dbut.gif)
283K
|
Inches |
4.70
|
3.70
|
1.50
|
mm |
120
|
94
|
38
|
1590Q
1590QBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
211K
|
![ZIP Download](zipbut.gif)
172K
|
![3D ZIP Download](zip3Dbut.gif)
270K
|
Inches |
4.70 |
4.70 |
1.1
|
mm |
120 |
120 |
28
|
1590U
1590UBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
218K
|
![ZIP Download](zipbut.gif)
158K
|
![3D ZIP Download](zip3Dbut.gif)
276K
|
Inches |
4.70 |
4.70 |
2.17 |
mm |
120 |
120 |
55 |
1590V
1590VBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
216K
|
![ZIP Download](zipbut.gif)
153K
|
![3D ZIP Download](zip3Dbut.gif)
284K
|
Inches |
4.70 |
4.70 |
3.54 |
mm |
120 |
120 |
90 |
1590C
1590CBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
231K
|
![ZIP Download](zipbut.gif)
181K
|
![3D ZIP Download](zip3Dbut.gif)
258K
|
Inches |
4.72 |
3.70 |
2.10 |
mm |
120 |
94 |
53 |
1590T
1590TBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
225K
|
![ZIP Download](zipbut.gif)
164K
|
![3D ZIP Download](zip3Dbut.gif)
291K
|
Inches |
4.74 |
3.13 |
2.17 |
mm |
120 |
80 |
55 |
1590CE
1590CEBK
|
Unpainted
Black
|
![PDF Download](pdficon.gif)
281K
|
![ZIP Download](zipbut.gif)
229K
|
![3D ZIP Download](zip3Dbut.gif)
726K
|
Inches |
4.74 |
3.95
|
2.37
|
mm |
120 |
100
|
60
|
1590N1
1590N1BK |
Unpainted
Black |
![PDF Download](pdficon.gif)
205K
|
![ZIP Download](zipbut.gif)
128K
|
![3D ZIP Download](zip3Dbut.gif)
182K
|
Inches
|
4.77
|
2.6
|
1.39
|
mm |
121.1
|
66
|
35.3
|
1590KK
1590KKBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
222K
|
![ZIP Download](zipbut.gif)
175K
|
![3D ZIP Download](zip3Dbut.gif)
291K
|
Inches
|
4.92
|
4.92
|
2.10
|
mm |
125
|
125
|
53
|
1590K
1590KBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
179K
|
![ZIP Download](zipbut.gif)
110K
|
![3D ZIP Download](zip3Dbut.gif)
121K
|
Inches |
4.92 |
4.92 |
2.95 |
mm |
125 |
125 |
75 |
1590J
1590JBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
192K
|
![ZIP Download](zipbut.gif)
129K
|
![3D ZIP Download](zip3Dbut.gif)
155K
|
Inches |
5.71 |
3.74 |
1.77 |
mm |
145 |
95 |
45 |
1590XX
1590XXBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
339K
|
![ZIP Download](zipbut.gif)
385K
|
![3D ZIP Download](zip3Dbut.gif)
1.4M
|
Inches |
5.72
|
4.77
|
1.39
|
mm |
145
|
121
|
35
|
1590X
1590XBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
336K
|
![ZIP Download](zipbut.gif)
424K
|
![3D ZIP Download](zip3Dbut.gif)
1.4M
|
Inches |
5.72
|
4.77
|
2.06
|
mm |
145
|
121
|
52
|
1590P1
1590P1BK |
Unpainted
Black |
![PDF Download](pdficon.gif)
203K
|
![ZIP Download](zipbut.gif)
150K
|
![3D ZIP Download](zip3Dbut.gif)
243K
|
Inches |
6.01 |
3.24 |
1.81 |
mm |
153 |
82 |
46 |
1590DD
1590DDBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
427K
|
![ZIP Download](zipbut.gif)
381K
|
![3D ZIP Download](zip3Dbut.gif)
844K
|
Inches |
7.38 |
4.70 |
1.30 |
mm |
188 |
119.5 |
33 |
1590D
1590DBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
252K
|
![ZIP Download](zipbut.gif)
352K
|
![3D ZIP Download](zip3Dbut.gif)
777K
|
Inches |
7.38 |
4.70 |
2.05 |
mm |
188 |
120 |
52 |
1590E
1590EBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
292K
|
![ZIP Download](zipbut.gif)
276K
|
![3D ZIP Download](zip3Dbut.gif)
865K
|
Inches |
7.38 |
4.70 |
3.07 |
mm |
188 |
120 |
78 |
1590F
1590FBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
278K
|
![ZIP Download](zipbut.gif)
297K
|
![3D ZIP Download](zip3Dbut.gif)
566K
|
Inches |
7.38
|
7.38
|
2.48
|
mm |
188
|
188
|
63
|
1590R1
1590R1BK |
Unpainted
Black |
![PDF Download](pdficon.gif)
230K
|
![ZIP Download](zipbut.gif)
245K
|
![3D ZIP Download](zip3Dbut.gif)
308K
|
Inches |
7.55 |
4.38 |
2.24 |
mm |
192 |
111 |
57 |
1590DE
1590DEBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
272K
|
![ZIP Download](zipbut.gif)
202K
|
![3D ZIP Download](zip3Dbut.gif)
539K
|
Inches |
7.88
|
4.73
|
2.37
|
mm |
200
|
120
|
60
|
1590EE
1590EEBK |
Unpainted
Black |
![PDF Download](pdficon.gif)
268K
|
![ZIP Download](zipbut.gif)
177K
|
![3D ZIP Download](zip3Dbut.gif)
526K
|
Inches |
7.88
|
4.73
|
3.17
|
mm |
200
|
120
|
80
|
Link here to photo tables
of each part number
NOTES:
- Add 0.16" (4 mm) to enclosure depth for lid
- Three sizes: 1590CE, 1590DE & 1590EE use metric lid screws. Replacement
part number is
1550MS100 - Package of 100.
- Available in natural vibra finish OR in light textured, black powder
paint.
- Three sizes above available from stock in smooth blue, green, grey,
orange & red powder paint. See our
1590 "stomp box"
series
Color Options
& Views:
NATURAL FINISH
|
BLACK SATIN TEXTURE FINISH
|
Assembled
|
Assembled
|
![](1590B2_B.jpg)
click to enlarge
|
![](1590BBK_B.jpg)
click to enlarge
|

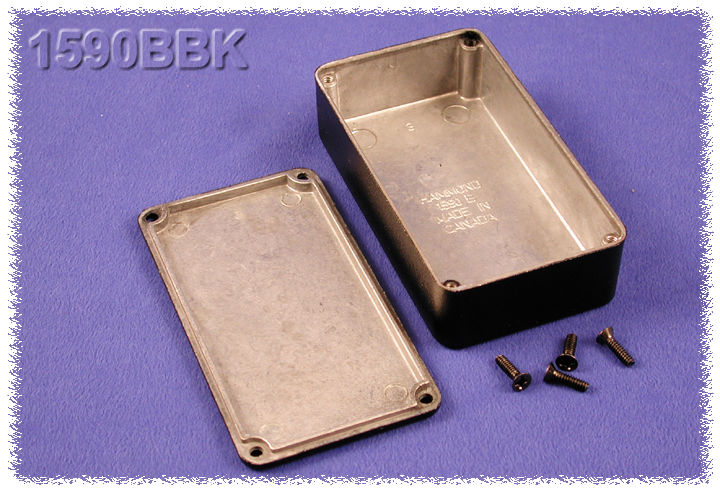

Interior
|
Interior
|
![](1590BInt_B.jpg)
click to enlarge
|
![](1590BBKInt_B.jpg)
click to enlarge
|
Gasket Kits:
![](../../../../網頁圖片/1590/1590BGASKET_B.jpg)
click to enlarge
|
-
Each kit
includes two pre-formed silicon gaskets.
-
Gaskets
include adhesive backing for easy installation.
-
-
Gasket is
applied to the lid (see photo example).
- Designed to meet
IP65 (with properly installed gasket and lid screws torqued at
55 cN.m).
|
![](../../../../網頁圖片/1590/1590BGASKET_LB.jpg)
click to enlarge
|
Enclosure Part Number
Starts With:
|
Use Gasket Kit
Part Number
(Includes two gaskets)
|
1590A |
1590AGASKET |
1590B |
1590BGASKET |
1590BB |
1590BBGASKET |
1590C |
1590BBGASKET |
1590D |
1590EGASKET |
1590DD |
1590EGASKET |
1590DE |
1590DEGASKET |
1590E |
1590EGASKET |
1590EE |
1590DEGASKET |
1590F |
1590FGASKET |
1590G |
1590GGASKET |
1590H |
1590HGASKET |
1590J |
1590JGASKET |
1590K |
1590KGASKET |
1590KK
|
1590KGASKET |
1590LB |
1590LBGASKET |
1590LLB |
1590LLBGASKET |
1590N |
1590NGASKET |
1590P |
1590PGASKET |
1590Q |
1590QGASKET |
1590R1 |
1590RGASKET |
1590S |
1590SGASKET |
1590T |
1590TGASKET |
1590U |
1590QGASKET |
1590V |
1590QGASKET |
1590X |
1590XGASKET |
1590XX |
1590XGASKET |
1590Y |
1590YGASKET |
Note:
for quantities contact us for a quotation on bulk packed versions
PART NO.
(Non Watertight)
|
PART NO.
(Watertight)
|
UNITS |
SIZE( L x W x H )
|
Depth of Lid |
1590LLB |
1590WLLB |
mm |
50 x 50 x 25 |
4 |
1590LB |
1590WLB |
mm |
51 x 51 31 |
4 |
1590H |
1590WH |
mm |
52.5 x 38 x 31 |
4 |
1590Y |
1590WY |
mm |
92 x 92 x 42 |
4 |
1590A |
1590WA |
mm |
93 x 39 x 31 |
4 |
1590G |
1590WG |
mm |
100 x 50 x 25 |
4 |
1590B |
1590WB |
mm |
112 x 60 x 31 |
4 |
1590BS |
1590WBS |
mm |
112 x 60 x 42 |
4 |
1590S |
1590WS |
mm |
111 x 82 x 44 |
4 |
1590N1 |
1590WN1 |
mm |
121 x 66 x 39 |
4 |
1590T |
1590WT |
mm |
120 x 80 x 59 |
4 |
1590BB |
1590WBB |
mm |
119 x 94 x 34 |
4 |
1590BBS |
1590WBBS |
mm |
119 x 94 x 42 |
4 |
1590C |
1590WC |
mm |
120 x 94 x 57 |
4 |
1590CE |
1590WCE |
mm |
120 x 100 x 64 |
4 |
1590Q |
1590WQ |
mm |
120 x 120 x 32 |
4 |
1590U |
1590WU |
mm |
120 x 120 x 59 |
4 |
1590V |
1590WV |
mm |
120 x 120 x 94 |
4 |
1590KK |
1590WKK |
mm |
125 x 125 x 57 |
4 |
1590K |
1590WK |
mm |
125 x 125 x 79 |
4 |
1590J |
1590WJ |
mm |
145 x 95 x 49 |
4 |
1590XX |
1590WXX |
mm |
145 x 121 x 39 |
4 |
1590X |
1590WX |
mm |
145 x 121 x 56 |
4 |
1590P1 |
1590WP1 |
mm |
153 x 82 x 50 |
4 |
1590DD |
1590WDD |
mm |
188 x 120 x 37 |
4 |
1590D |
1590WD |
mm |
188 x 120 x 56 |
4 |
1590E |
1590WE |
mm |
188 x 120 x 82 |
4 |
1590F |
1590WF |
mm |
188 x 188 x 67 |
4 |
1590R1 |
1590WR1 |
mm |
192 x 111 x 61 |
4 |
1590DE |
1590WDE |
mm |
200 x 120 x 64 |
4 |
1590EE |
1590WEE |
mm |
200 x 120 x 84 |
4 |
Customization
Service:
• Machining: Drilling, Milling, Punching for
custom cut-out opening.
• Finish: Silkscreen Printing, PAD Printing,
Hot Stamp Printing & Painting.
• Insert Modification: Top cover recessed area
could modify as customer's opening for quantity production.
(MOQ requested)
• Custom
material and Custom Color are available up on request. (MOQ
requested)
• Custom OEM and ODM enclosure projects are
available up on request. (MOQ requested)
|
