1590 Stomp  Series         back to PRODUCTS



Home

Painted "Stomp Box" - Diecast Aluminum Enclosures
(1590 Series)

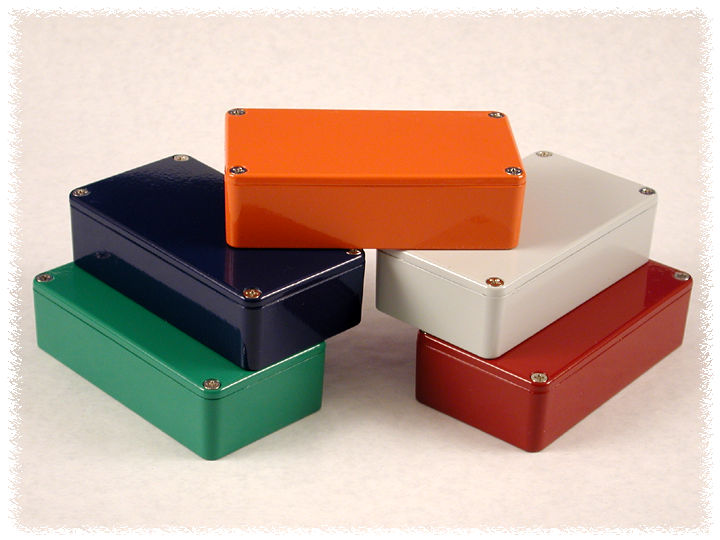

1590B Group View
Five Colors

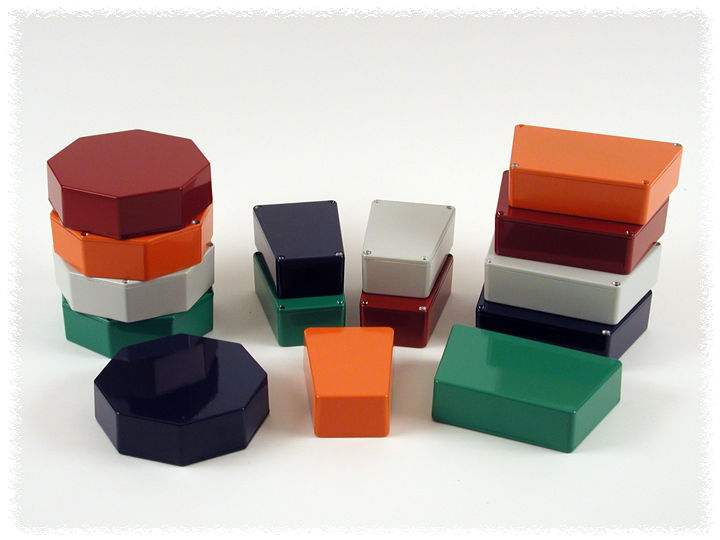

Trapezoidal & Octagon Group
Five Colors

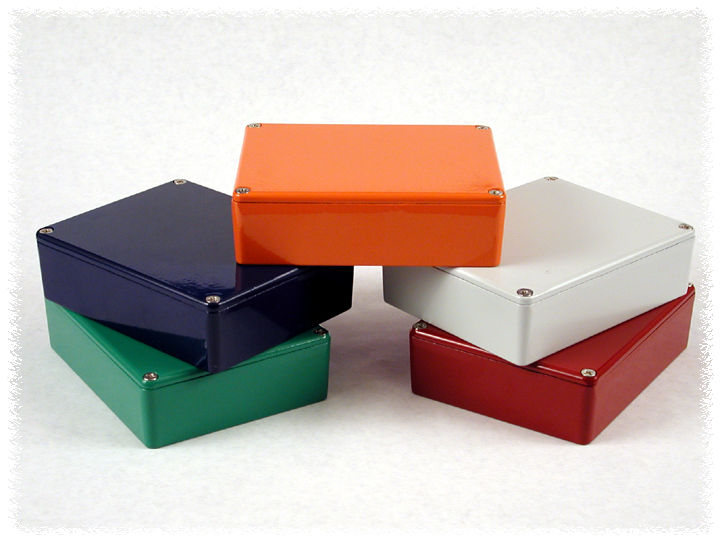

1590BB Group View
Five Colors

click to enlarge

click to enlarge

click to enlarge

Key Features:


  • Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
  • This stock "Stomp Box" version is our popular 1590B & 1590BB & 1590XX enclosure - powder painted - to save stomp box manufacturers and experimenters time & money. Also added - our trapezoidal & octagon sizes.
  • Painted "Stomp Box" versions are coated with a smooth gloss polyester powder paint for a lasting finish, even after machining.
  • Smooth paint allows for easy adhesion of labels and/or silk screens.
  • Paint colors are matched to standard RAL colors (see table below).
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted & textured black version is also available & in many other sizes and styles - please see our 1590 series or 1590TRP, 1590STP series

  • Designed to meet IP54 (see gasket kit accessory below to meet IP66).
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
  • Replacement screws - nickel plated, 6-32 x 1/2� - 1590MS100 - Package of 100. For an even funkier look - order our black replacement screws, 6-32 x 1/2� - 1590MS50BK - Package of 50



Red

Purple & Yellow

click to enlarge


click to enlarge

Rectangular Versions


Part Number

Color

RAL
Number


Reader
File

AutoCAD
.dwg Files
(zipped)
3D
Solid Model
.igs & .stp
files (zipped)

Units

Length

Width

Enclosure
Depth
(Less Lid)

1590BCB Cobalt Blue RAL 5013
PDF Download
232K
ZIP Download
223K
3D ZIP Download
254K
Inches
4.40
2.38
1.06
1590BGR

Green

RAL 6024
1590BLG Light Gray RAL 7035
1590BOR Orange RAL 2009 mm
112
60
27
1590BPR Purple RAL 4008
1590BRD Red RAL 3011
1590BYL Yellow RAL 1021

1590BSCB Cobalt Blue RAL 5013 PDF Download
236K
ZIP Download
177K
3D ZIP Download
271K
Inches 4.40 2.38 1.50
1590BSGR

Green

RAL 6024
1590BSLG Light Gray RAL 7035
1590BSOR Orange RAL 2009 mm 112 60 38
1590BSPR Purple RAL 4008
1590BSRD Red RAL 3011
1590BSYL Yellow RAL 1021

1590BBCB Cobalt Blue RAL 5013
PDF Download
229K
ZIP Download
181K
3D ZIP Download
301K
Inches

4.67

3.68

1.18

1590BBGR

Green

RAL 6024
1590BBLG Light Gray RAL 7035
1590BBOR Orange RAL 2009 mm

119

94

30

1590BBPR Purple RAL 4008
1590BBRD Red RAL 3011
1590BBYL Yellow RAL 1021

1590BBSCB Cobalt Blue RAL 5013
PDF Download
241K
ZIP Download
213K
3D ZIP Download
283K
Inches
4.70
3.70
1.50
1590BBSGR

Green

RAL 6024
1590BBSLG Light Gray RAL 7035
1590BBSOR Orange RAL 2009 mm
120
94
38
1590BBSPR Purple RAL 4008
1590BBSRD Red RAL 3011
1590BBSYL Yellow RAL 1021

1590XXCB Cobalt Blue RAL 5013
PDF Download
339K
ZIP Download
385K
3D ZIP Download
1.4M
Inches
5.72
4.77
1.39
1590XXGR

Green

RAL 6024
1590XXLG Light Gray RAL 7035
1590XXOR Orange RAL 2009 mm
145
121
35
1590XXPR Purple RAL 4008
1590XXRD Red RAL 3011
1590XXYL Yellow RAL 1021

NOTES:

  • Add 0.16" (4 mm) to enclosure depth for lid
  • Available from stock in unpainted & powder black textured too (link here to our 1590 series).





click to enlarge


click to enlarge

Trapezoidal & Octagon Versions

Part Number

Color

RAL
Number
Shape


Reader
File

AutoCAD
.dwg Files
(zipped)
3D
Solid Model
.igs & .stp
files (zipped)

Units

Length

Width

Enclosure
Depth
(Less Lid)

Small
End

Large
End

1590TRPBCB Cobalt Blue RAL 5013
Narrow
Trapezoid
PDF Download
298K
ZIP Download
122K
3D ZIP Download
167K
Inches
4.41
2.42
3.11
1.38
1590TRPBGR Green

RAL 6024
1590TRPBLG Light Gray RAL 7035
1590TRPBOR Orange RAL 2009 mm
112.0
61.5
79.0
35.2
1590TRPBPR Purple RAL 4008
1590TRPBRD Red RAL 3011
1590TRPBYL Yellow RAL 1021

1590TRPCCB Cobalt Blue RAL 5013
Wide
Trapezoid
PDF Download
286K
ZIP Download
124K
3D ZIP Download
183K
Inches
3.74
4.79
5.95
1.38
1590TRPCGR Green

RAL 6024
1590TRPCLG Light Gray RAL 7035
1590TRPCOR Orange RAL 2009 mm
95
121.8
151.0
35.2
1590TRPCPR Purple RAL 4008
1590TRPCRD Red RAL 3011
1590TRPCYL Yellow RAL 1021

1590STPCCB Cobalt Blue RAL 5013
Octagon
PDF Download
286K
ZIP Download
168K
3D ZIP Download
277K
Inches
5.23
5.23
1.38
1590STPCGR Green

RAL 6024
1590STPCLG Light Gray RAL 7035
1590STPCOR

Orange RAL 2009 mm

132.8

132.8

35.2
1590STPCPR Purple RAL 4008
1590STPCRD Red RAL 3011
1590STPCYL Yellow RAL 1021

NOTES:

  • Add 0.16" (4 mm) to enclosure depth for lid
  • Available from stock in unpainted & powder black textured too (link here to our 1590TRP, 1590STP series).



Assembled (1590BB size)
Lid View
Assembled (1590BB size)
Bottom View

click to enlarge

click to enlarge


A Few Color Option Examples & Views (1590B size shown):


Cobalt Blue
Green
Light Gray
Assembled

click to enlarge

click to enlarge

click to enlarge
Interior

click to enlarge

click to enlarge

click to enlarge


Orange
Red
Assembled

click to enlarge

click to enlarge
Interior

click to enlarge

click to enlarge



A Few Color Option Examples & Views (1590BB size shown):


Cobalt Blue
Green
Light Gray
Assembled

click to enlarge

click to enlarge

click to enlarge
Interior

click to enlarge

click to enlarge

click to enlarge


Orange
Red
Assembled
click to enlarge

click to enlarge
Interior

 click to enlarge

click to enlarge


Accessories



Gasket Kits:


click to enlarge
  • Each kit includes two pre-formed silicon gaskets.
  • Gaskets include adhesive backing for easy installation.
  • Allows enclosure to be machined and gasketed later.
  • Gasket is applied to the lid (see photo example).
  • Designed to meet IP65 (with properly installed gasket and lid screws torqued at 55 cN.m).

click to enlarge


Enclosure Part Number
Starts With:
Use Gasket Kit
Part Number
(Includes two gaskets)
1590B 1590BGASKET
1590BB 1590BBGASKET
1590XX 1590XGASKET
1590TRPB Not Available
1590TRPC Not Available
1590STPC Not Available

Note: for quantities contact us for a quotation on bulk packed versions






Exactly what you are looking for???
Link to our stocking distributors - most have "on-line" pricing, stock check and ordering!!!











PART NO.



Color



RAL Number



UNITS



SIZE( L x W x H )



1590BCB Cobalt Bold RAL5013 mm 112 x 60 x 31
1590BGR Green RAL6024 mm
1590BLG Light Gray RAL7035 mm
1590BOR Orange RAL2009 mm
1590BPR Purple RAL4008 mm
1590BRD Red RAL3011 mm
1590BYL Yellow RAL1021 mm
1590BBCB Cobalt Bold RAL5013 mm 119 x 94 x 34
1590BBGR Green RAL6024 mm
1590BBLG Light Gray RAL7035 mm
1590BBOR Orange RAL2009 mm
1590BBPR Purple RAL4008 mm
1590BBRD Red RAL3011 mm
1590BBYL Yellow RAL1021 mm
1590XXCB Cobalt Bold RAL5013 mm 145 x 121 x 39
1590XXGR Green RAL6024 mm
1590XXLG Light Gray RAL7035 mm
1590XXOR Orange RAL2009 mm
1590XXPR Purple RAL4008 mm
1590XXRD Red RAL3011 mm
1590XXYL Yellow RAL1021 mm

Customization Service:

• Machining: Drilling, Milling, Punching for custom cut-out opening.

• Finish: Silkscreen Printing, PAD Printing, Hot Stamp Printing & Painting.

• Insert Modification: Top cover recessed area could modify as customer's opening for quantity production.

 (MOQ requested)

• Custom material and Custom Color are available up on request.  (MOQ requested)

Custom OEM and ODM enclosure projects are available up on request.  (MOQ requested)
