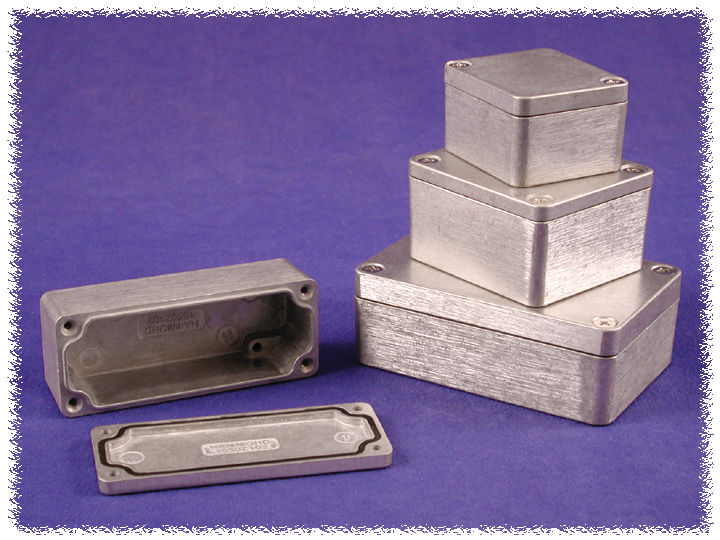

1550Z
Series
¡@
|
|
Watertight - Thick Wall
Diecast Aluminum Enclosures
(1550Z Series)
|
|
|
click to enlarge
|
click to enlarge
|
click to enlarge
|
|
¡@
Key Features:
- Very economical - thick
wall - diecast aluminum - watertight electronic instrument enclosure.
- Rugged, diecast aluminum
alloy (tough - yet easy to machine),
- Two piece tongue & grooves
construction for protection against access of dust and water.
- Ideal for repetitive
opening and closing.
- Easy to wall mount using
"through box - blind hole" construction (on all sizes except: 1550Z102,
1550Z115 & 1550Z120). Access to blind holes is outside of gasket ring
for superior protection (see
features below).
- Unpainted version is
vibrato
finished for a smooth surface with no sharp edges.
- Painted version is painted
with tough polyester powder paint for a lasting finish, even after
machining. Paint is applied to the entire enclosure (inside & out).
- Lid secured with either
two, four or six (count varies with size) stainless steel, Philips head,
counter sunk, machine screws - into factory tapped holes (sizes vary -
refer to PDF drawings for details).
- Lid screws are outside the
gasket protection area to eliminate the need for "O" rings on the
screws.
- On six sizes (the
1550Z107, 1550Z108, 1550Z116, 1550Z117, 1550Z137 & 1550Z139) lid screws
are self captivating. The lid holes are slightly undersized & threaded
with the first installation of the self tapping - lid screws (see
features below). Enclosure holes are pre-tapped.
- Designed to meet IP66 (NEMA
1, 4, 4X, 12 & 13 ratings) - gasket is pre-formed, one-piece - silicone
rubber. Easy installation into lid groove.
- North American Mark of
Safety - cUL & UL listed. Certified to NEMA 4X standards - File #E71073
- No internal ribs for easy
installation of connectors without interference or additional milling.
-
Link here to
photo tables
of each part number.
|
Part Number |
Color |
Reader
File |
AutoCAD
.dwg
File (zipped) |
3D
Solid Model
.igs & .stp
files (zipped)
|
Units |
Length |
Width |
Enclosure
Depth
(Less Lid) |
Lid
Thickness
|
1550Z101
1550Z101BK |
Unpainted
Black |
513K
|
397K
|
1.7M
|
Inches
|
1.98
|
1.78
|
0.95
|
0.24
|
|
mm |
50.2
|
45.2
|
24.2
|
6.2
|
1550Z104
1550Z104BK |
Unpainted
Black |
518K
|
407K
|
1.6MB
|
Inches |
2.54
|
2.30
|
1.19
|
0.21
|
|
mm |
64.4
|
58.4
|
30.2
|
5.2
|
1550Z102
1550Z102BK |
Unpainted
Black |
362K
|
537K
|
2.0M
|
Inches |
3.55
|
1.43
|
0.99
|
0.21
|
|
mm |
90.2
|
36.2
|
25.2
|
5.2
|

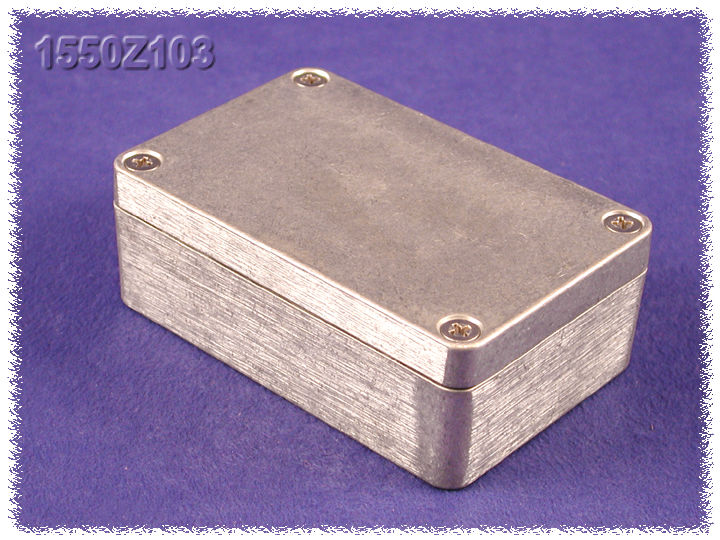

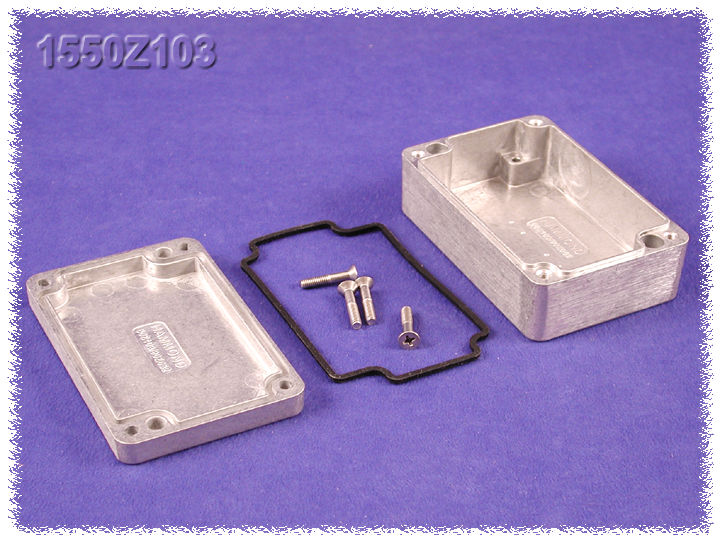

1550Z103
1550Z103BK |
Unpainted
Black |
550K
|
615K
|
2.4M
|
Inches |
3.87
|
2.54
|
0.99
|
0.36
|
|
mm |
98.4
|
64.4
|
25.2
|
9.2
|
1550Z106
1550Z106BK |
Unpainted
Black |
535K
|
561K
|
1.8M
|
Inches |
4.54
|
2.58
|
0.99
|
0.21
|
|
mm |
115.4
|
65.4
|
25.2
|
5.2
|
1550Z111
1550Z111BK |
Unpainted
Black |
362K
|
420K
|
1.6M
|
Inches |
4.54
|
2.58
|
1.97
|
0.21
|
|
mm |
115.4
|
65.4
|
50.2
|
5.2
|
1550Z113
1550Z113BK |
Unpainted
Black |
358K
|
378K
|
1.4M
|
Inches |
4.54
|
3.56
|
1.98
|
0.21
|
|
mm |
115.4
|
90.4
|
50.2
|
5.2
|
1550Z137
1550Z137BK |
Unpainted
Black |
495K
|
656K
|
2.0M
|
Inches |
4.76
|
4.76
|
3.19
|
0.81
|
|
mm |
120.8
|
120.8
|
81.2
|
20.5
|
1550Z107
1550Z107BK |
Unpainted
Black |
496K
|
594K
|
2.0M
|
Inches |
4.94
|
3.17
|
0.99
|
0.61
|
|
mm |
125.4
|
80.4
|
25.2
|
15.6
|
1550Z108
1550Z108BK |
Unpainted
Black |
506K
|
561K
|
2.2M
|
Inches |
4.94
|
3.17
|
1.70
|
0.61
|
|
mm |
125.4
|
80.4
|
43.2
|
15.6
|
1550Z115
1550Z115BK |
Unpainted
Black |
481K
|
466K
|
1.8M
|
Inches |
5.84
|
4.27
|
2.57
|
0.40
|
|
mm |
148.4
|
108.4
|
65.2
|
10.2
|
1550Z109
1550Z109BK |
Unpainted
Black |
529K
|
684K
|
2.4M
|
Inches |
5.91
|
2.53
|
1.03
|
0.40
|
|
mm |
150.2
|
64.2
|
26.2
|
10.2
|
1550Z139
1550Z139BK |
Unpainted
Black |
474K
|
671K
|
2.1M
|
Inches |
6.28
|
6.28
|
3.21
|
0.81
|
|
mm |
159.4
|
159.4
|
81.5
|
20.5
|
1550Z116
1550Z116BK |
Unpainted
Black |
452K
|
515K
|
1.6M
|
Inches |
6.32
|
3.95
|
1.58
|
0.79
|
|
mm |
160.4
|
100.4
|
40.2
|
20.0
|
1550Z117
1550Z117BK |
Unpainted
Black |
449K
|
410K
|
1.6M
|
Inches
|
6.32
|
3.95
|
2.41
|
0.79
|
|
mm |
160.4
|
100.4
|
61.2
|
20.0
|
1550Z120
1550Z120BK |
Unpainted
Black |
472K
|
526K
|
1.8M
|
Inches |
6.74
|
4.77
|
1.78
|
0.40
|
|
mm |
171.2
|
121.2
|
45.2
|
10.2
|
1550Z124
1550Z124BK |
Unpainted
Black |
561K
|
684K
|
2.0M
|
Inches |
8.76
|
5.77
|
1.97
|
0.20
|
|
mm |
222.5
|
146.5
|
50
|
5
|
1550Z220
1550Z220BK |
Unpainted
Black |
575K
|
722K
|
1.7M
|
Inches |
8.76
|
5.77
|
1.97
|
1.28
|
|
mm |
222.5
|
146.5
|
50.0
|
32.5
|
Finish Options
:
|

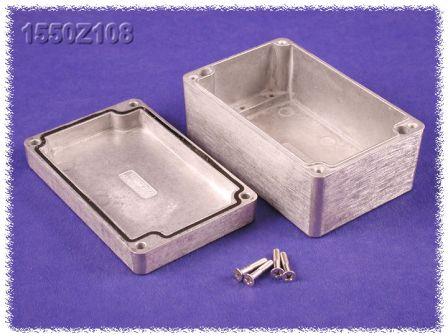

Unpainted
(1550Z108 shown)
|
click to enlarge
|
click to enlarge
|
|

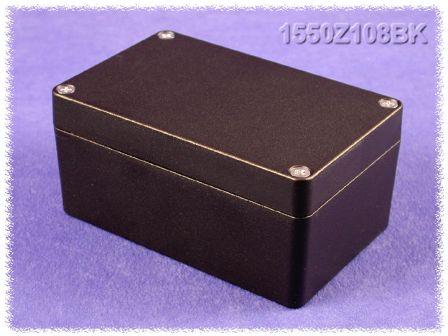

Black Satin -
Powder Paint
(1550Z108BK shown)
|
click to enlarge
|
¡@
|
¡@
Customization
Service:
• Machining: Drilling, CNC Milling, Punching for
custom cut-out opening.
• Finish: Silkscreen Printing, PAD Printing,
Hot Stamp Printing, Painting & Powder Coating.
• Insert Modification: Top cover
could modify as customer's opening
for quantity production. (MOQ requested)
• Custom
material and Custom Color are available up on request. (MOQ
requested)
• Custom OEM and ODM enclosure projects are
available up on request. (MOQ requested)
|
